Description

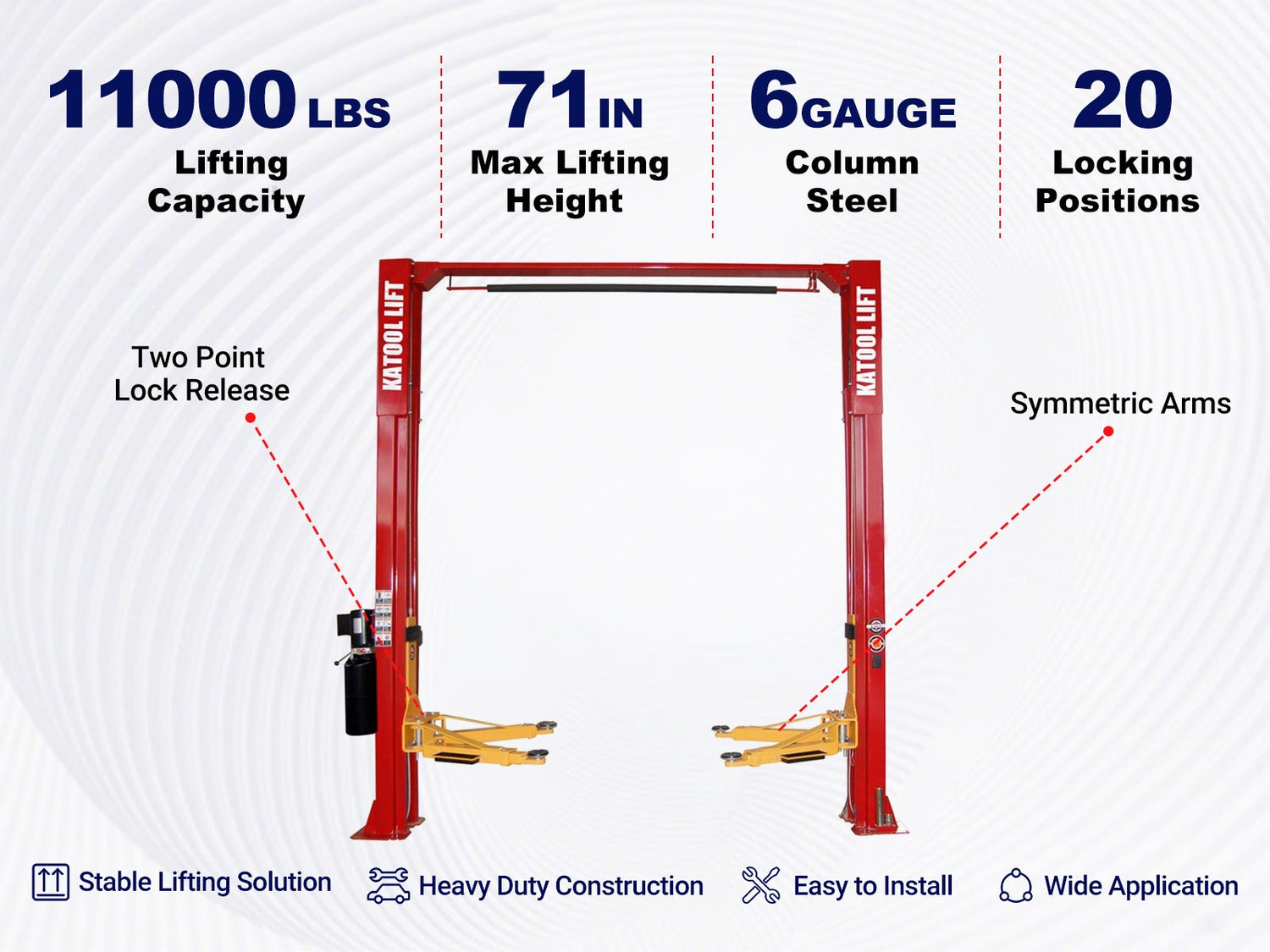

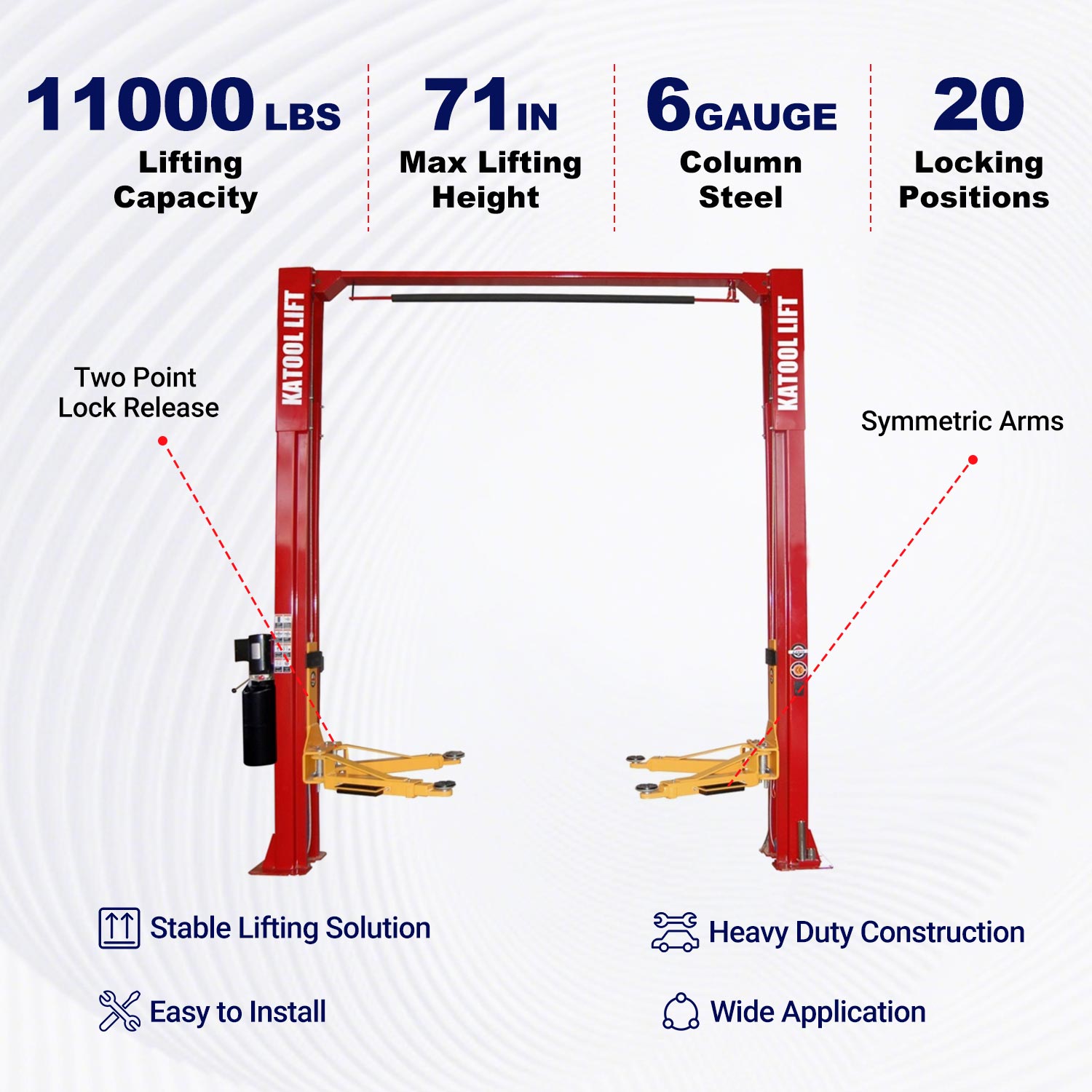

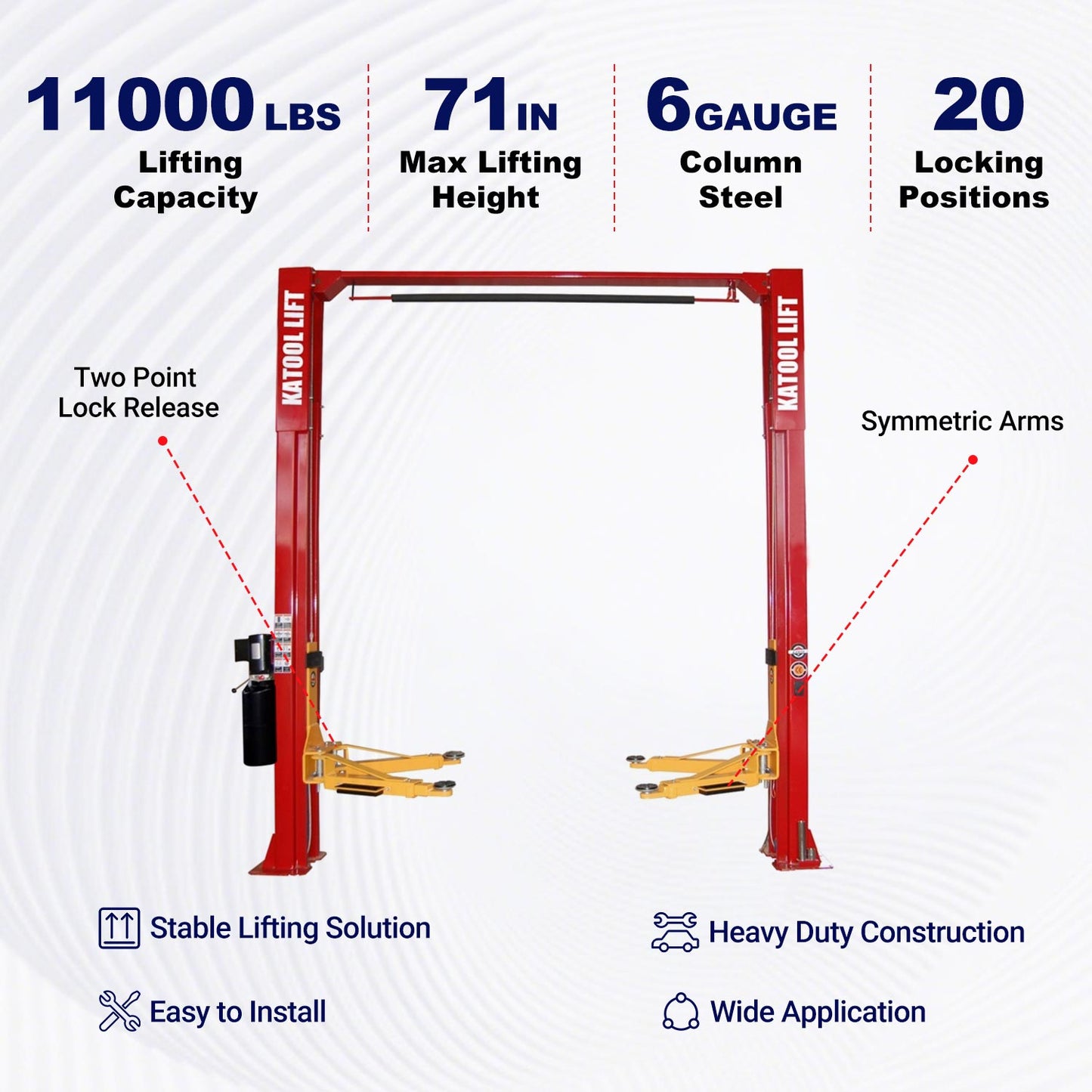

Introducing the KT-M110 Two Post Clear-floor Vehicle Lift, a pinnacle of automotive lifting technology. With symmetrical lifting arms and a robust 11,000lbs capacity, it ensures a secure and balanced lift for a diverse range of vehicles. The bilateral unlocking mechanism guarantees synchronized control, prioritizing safety during operation. Ideal for professional garages and serious DIY enthusiasts, the KT-M110 excels in scenarios like routine maintenance, repairs, and inspections. Its clear-floor design provides unobstructed access underneath the vehicle, making it a versatile solution for a myriad of automotive tasks. Elevate your workspace and efficiency with the precision and power of the KT-M110 Two Post Clear-floor Vehicle Lift.
User Manual
Specifications
Dimension(LxWxH) | |
Net weight | 1367 lbs |
Lifting Capacity | 11000lbs/5000KG |
Max. Lifting Height | 70.75"/1800mm |
Min. Height | 4.25"/110mm |
Height Overall | 141.25"/3587mm |
Width Overall | 142.25"/3614mm |
Outside Column | 128"/3250mm |
Inside Column | 110.25"/2800mm |
Drive-Thru Clearance | 94.5"/2400mm |
Front Arm Reach (Min) | 30.75"/780mm (2 stages) |
Front Arm Reach (Max) | 50.5"/1280mm (2 stages) |
Rear Arm Reach (Min) | 30.75"/780mm (2 stages) |
Rear Arm Reach (Max) | 50.5"/1280mm (2 stages) |
Motor | 220VAC/60HZ/1PH/2.2KW |
Feature
- 11000lbs lifting capacity.
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Symmetric clear-floor design.
- Manual safety release from two sides.
- Symmetric arm.

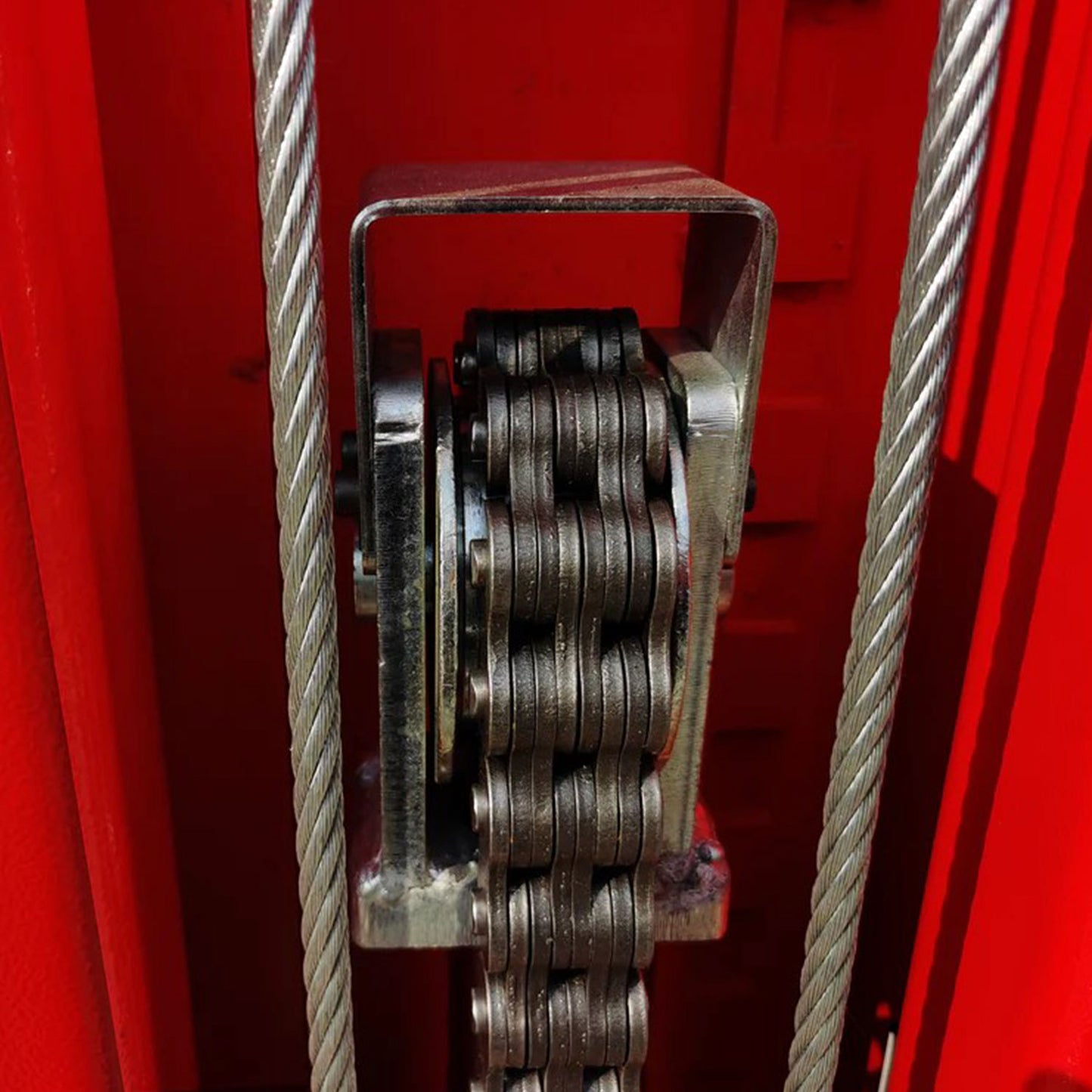

- Dual Hydraulic Chain-Drive Cylinders.
- Rubber pad door opening protection.
- Comes with extension support adaptor sets of +30mm and +120mm.
- Added overhead safety shutoff bar.
- Feet-protection safety guardrails with tools box.
- Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH(Optional).
Package Size
- LxWxH (inch): 112"x18"x35.4"
- Weight (lb): 1367
- A forklift or equivalent is required for unloading
