Description

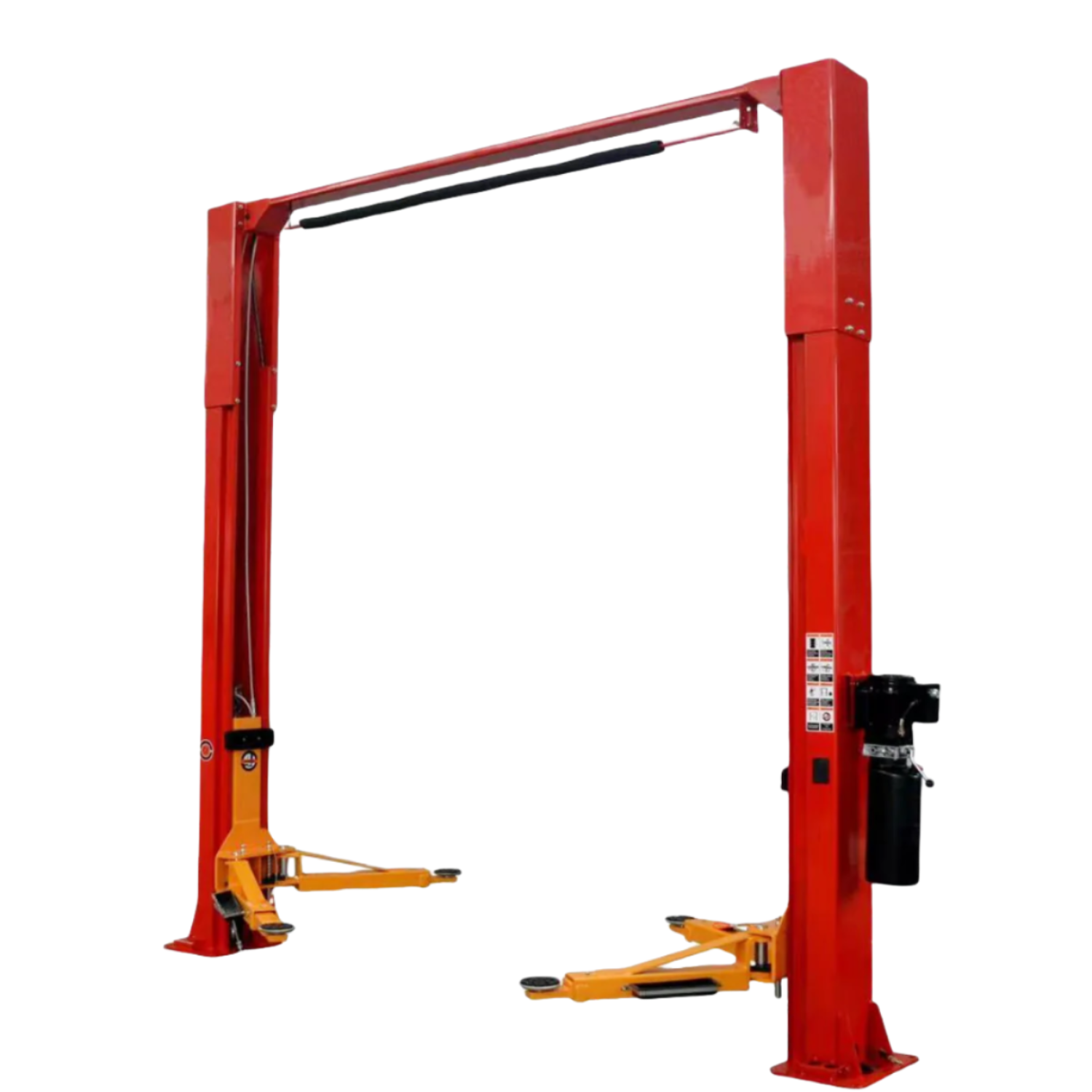

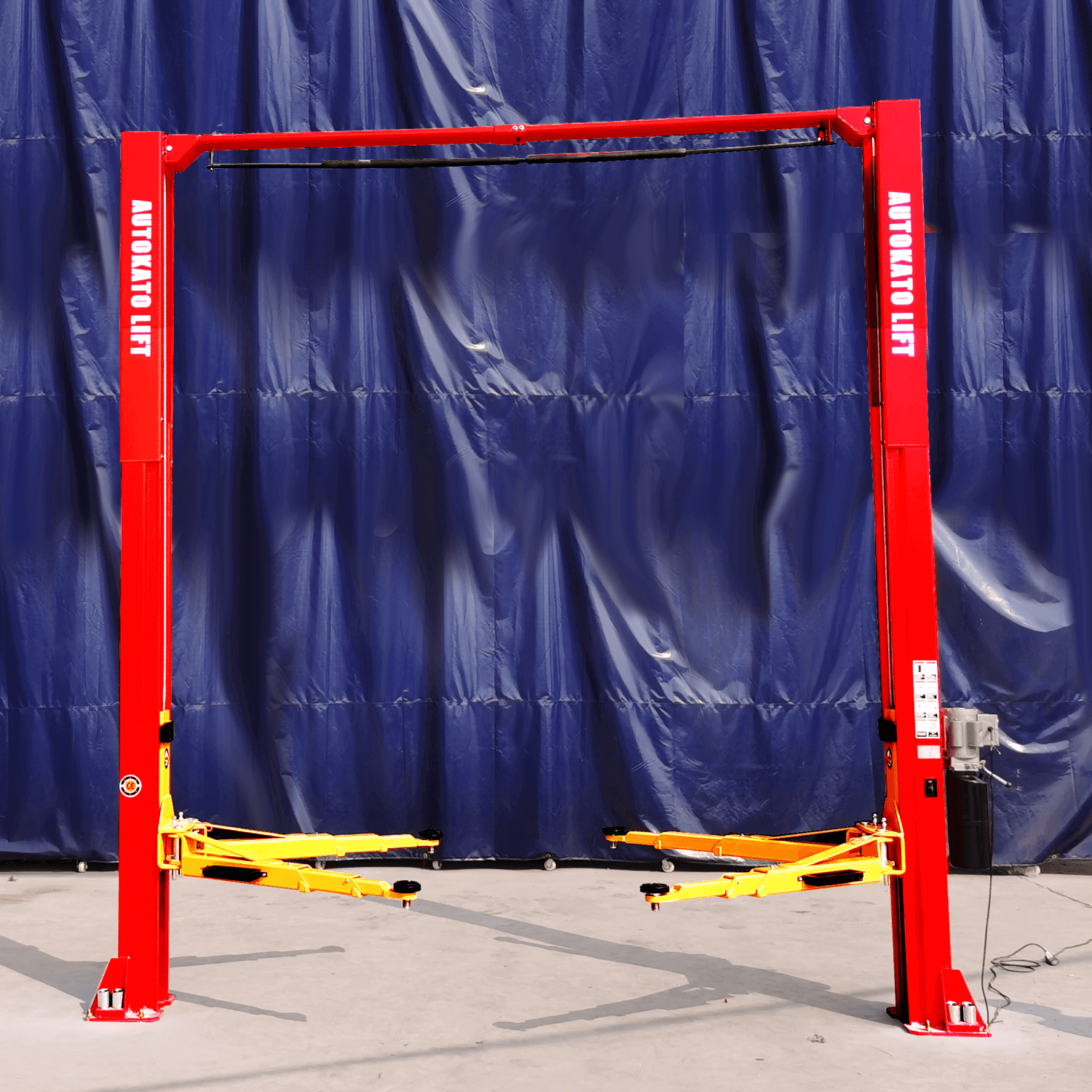

Unleash the power of the KT-M120 Two Post Clear-floor Vehicle Lift, a heavyweight champion in automotive elevation. Engineered with symmetrical lifting arms and a robust 12,000 lbs capacity, it guarantees a balanced and secure lift for a diverse array of vehicles. The innovative bilateral unlocking system ensures synchronized control, prioritizing safety in every lift. Tailored for professional garages and enthusiasts tackling extensive projects, the KT-M120 excels in scenarios ranging from heavy-duty repairs to routine maintenance, providing unmatched versatility. Its clear-floor design grants unobstructed access beneath vehicles, revolutionizing workspace dynamics. Elevate your lifting experience with the precision and muscle of the KT-M120 Two Post Clear-floor Vehicle Lift.
User Manual
Specifications

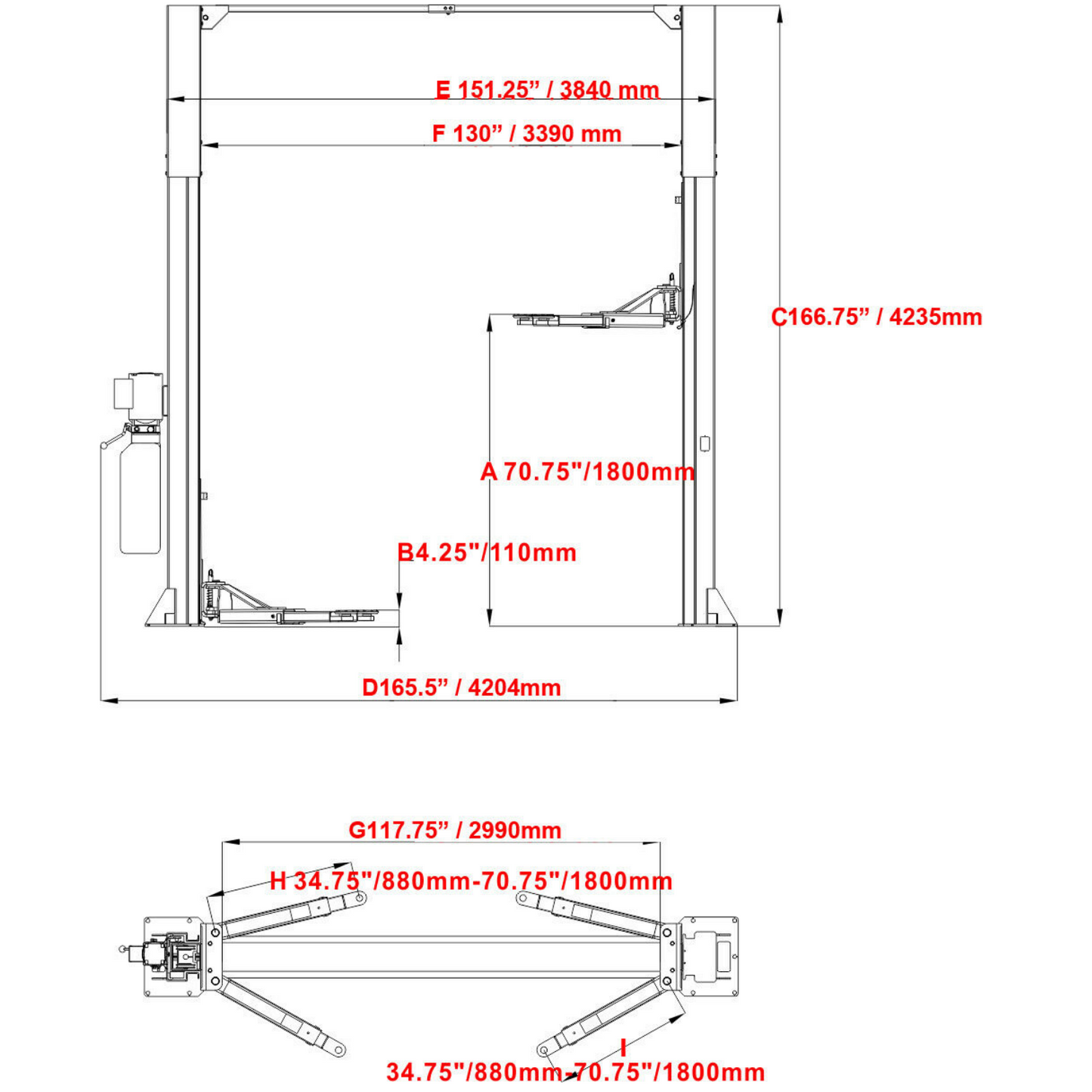

| Dimension(LxWxH) | |
| Net weight | 1653 lbs |
| Max. Lifting Height | 70.75"/1800mm |

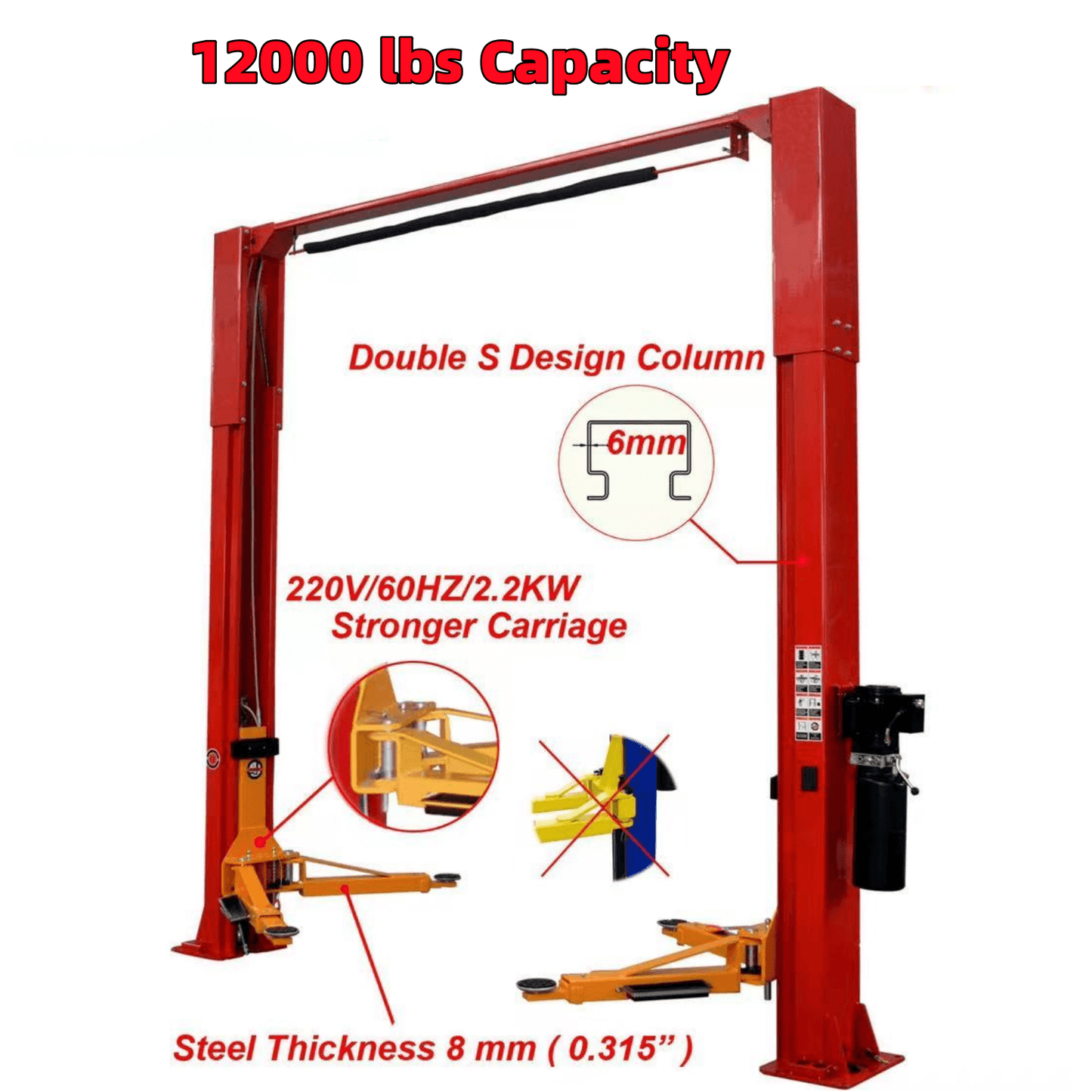

| Lifting Capacity | 12000lbs/5500KG |
| Min. Height | 4.25"/110mm |
| Height Overall | 166.75" / 4235mm |
| Width Overall | 165.5" / 4204mm |
| Outside Column | 151.25" / 3840mm |
| Inside Column | 130" / 3390mm |
| Drive-Thru Clearance | 117.75" / 2990mm |
| Motor | 220VAC/60HZ/1PH |
Feature
- 12000lbs(5500KG) lifting capacity.
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Manual safety release from two sides.

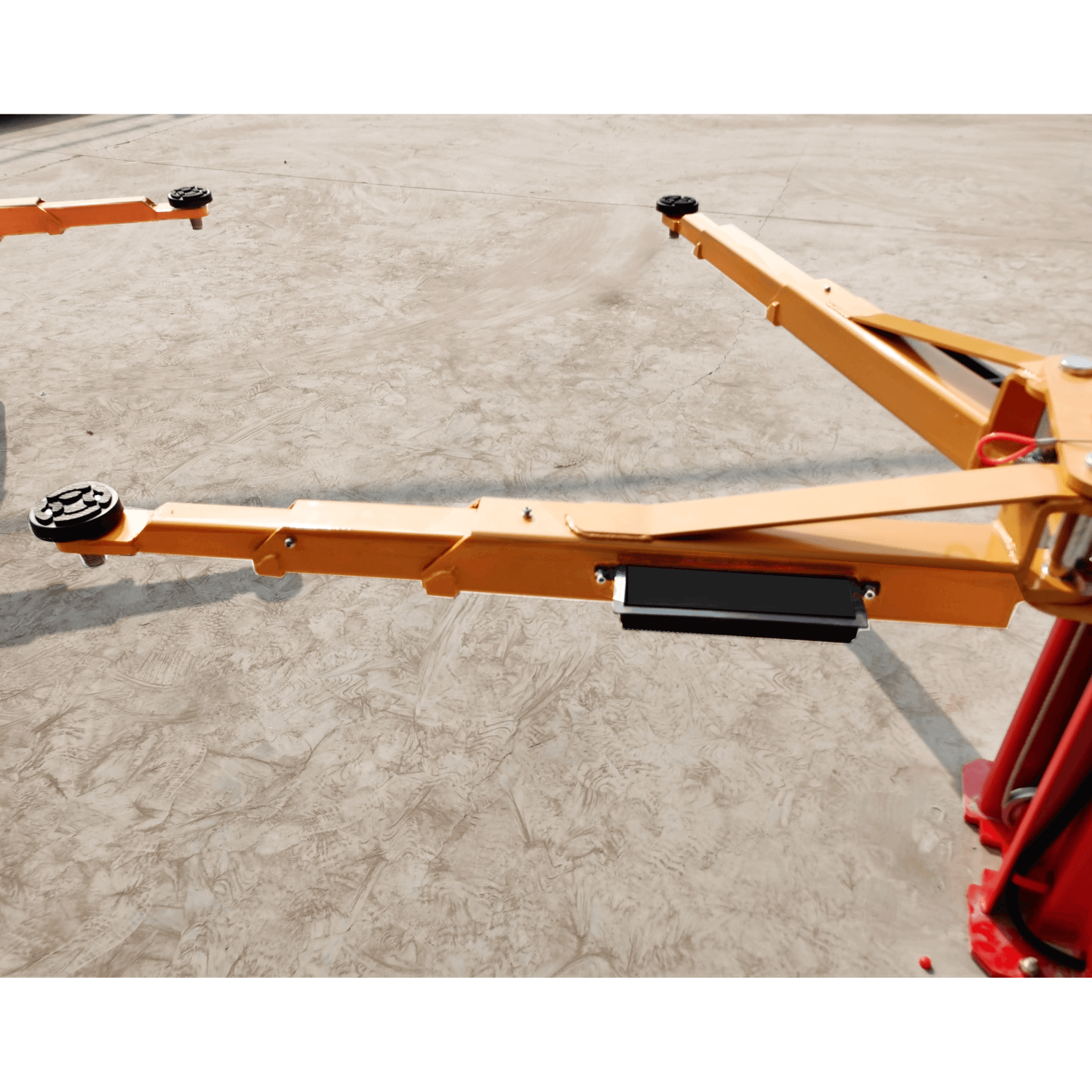

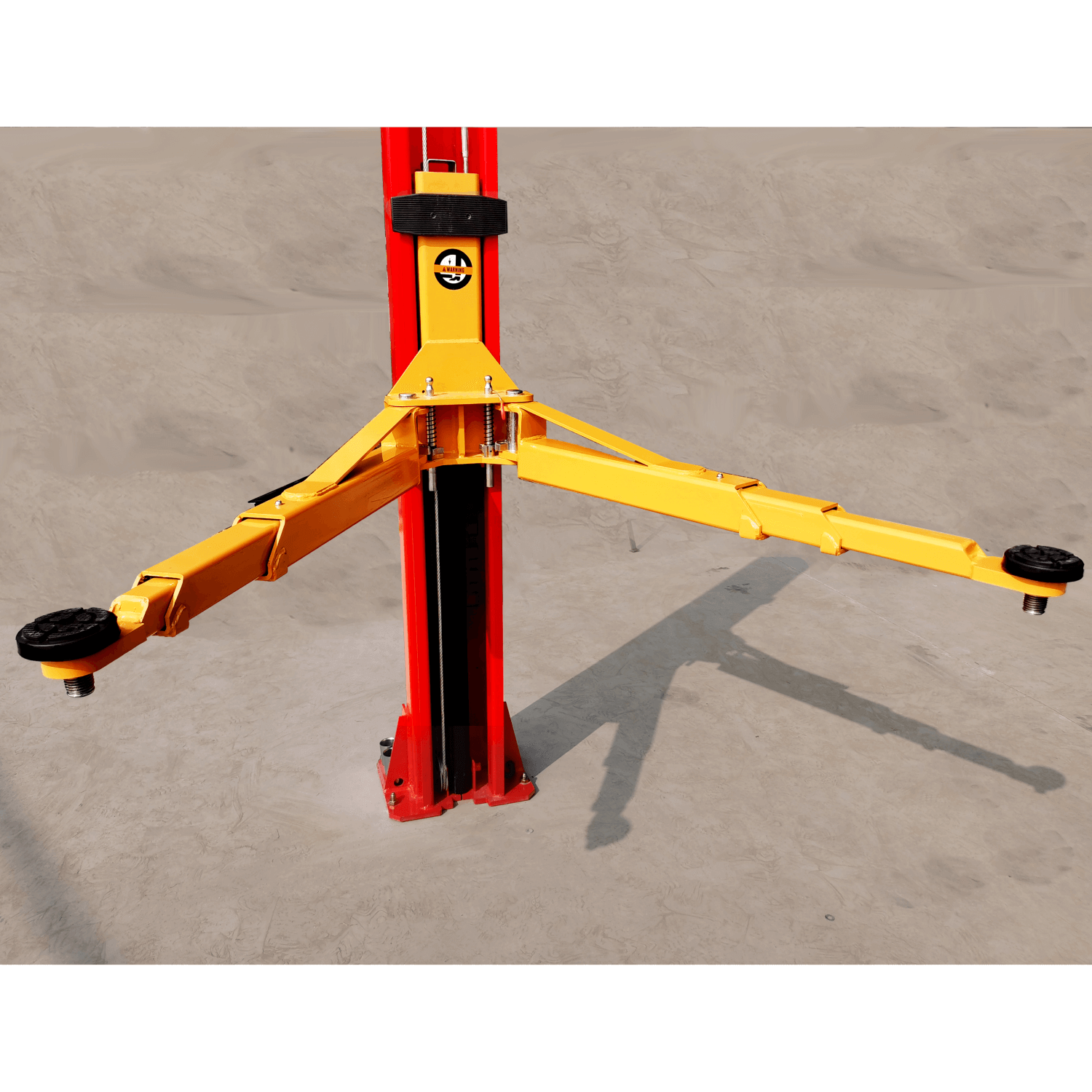

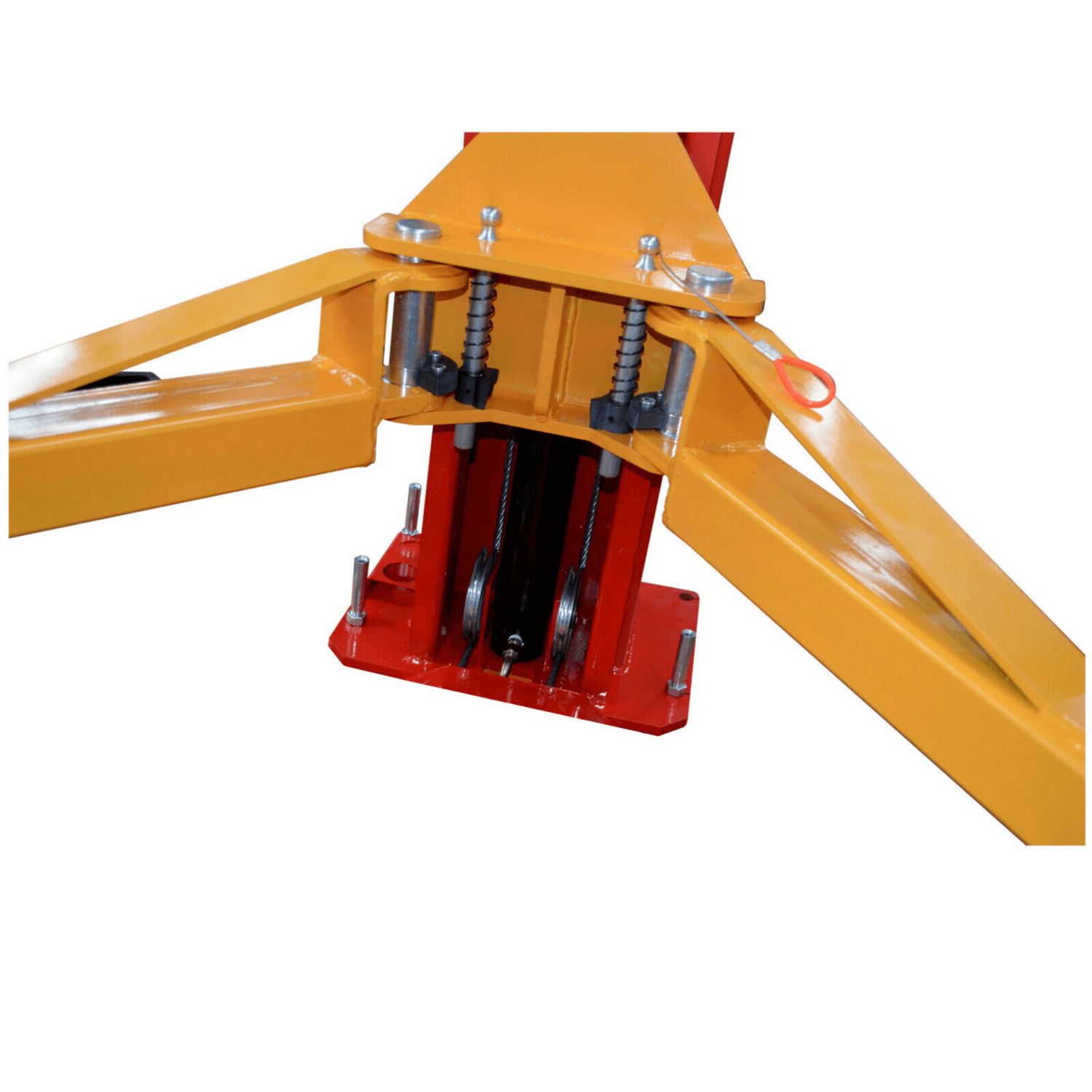

- Symmetric arms.

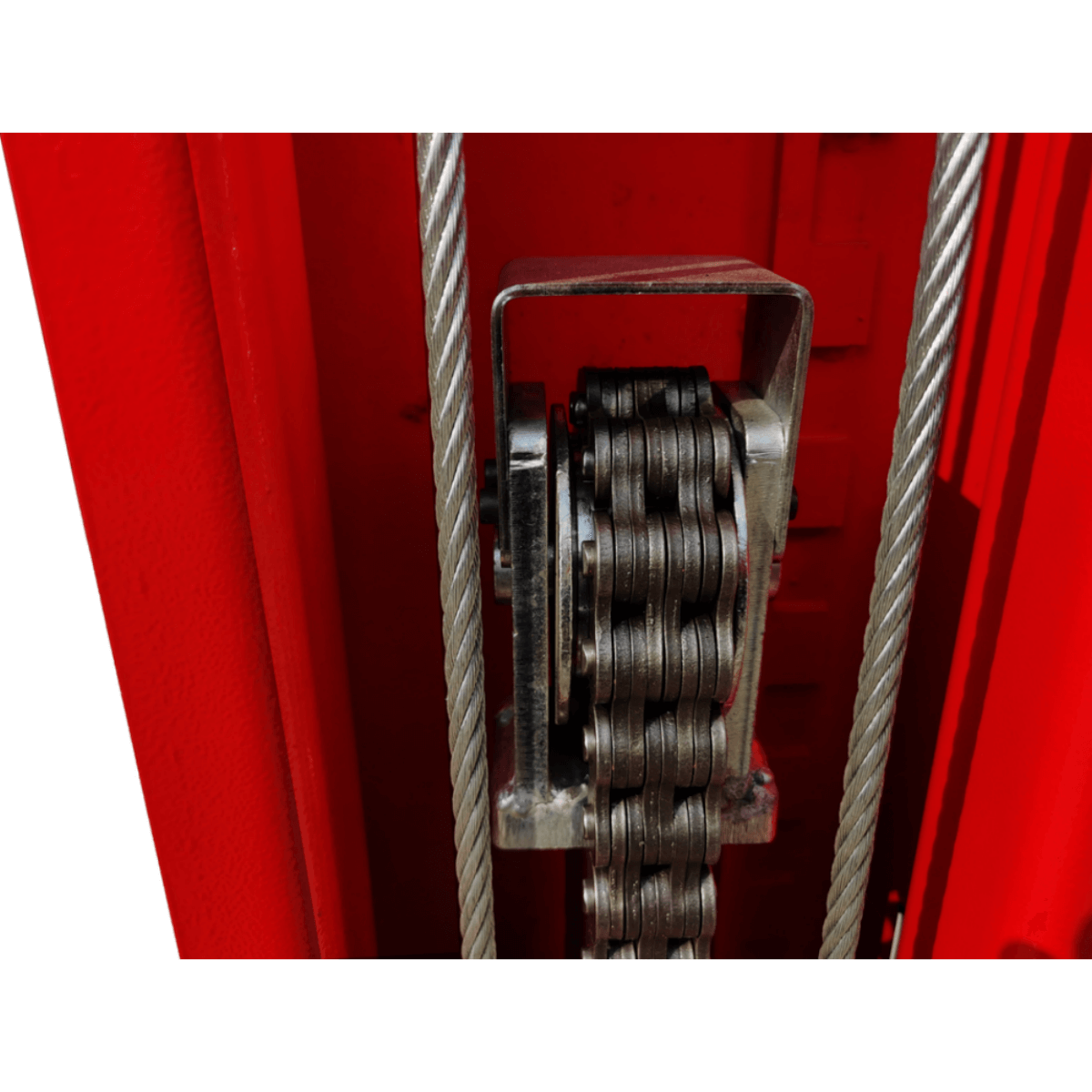

- Dual Hydraulic Chain-Drive Cylinders.
- Rubber pad door opening protection.

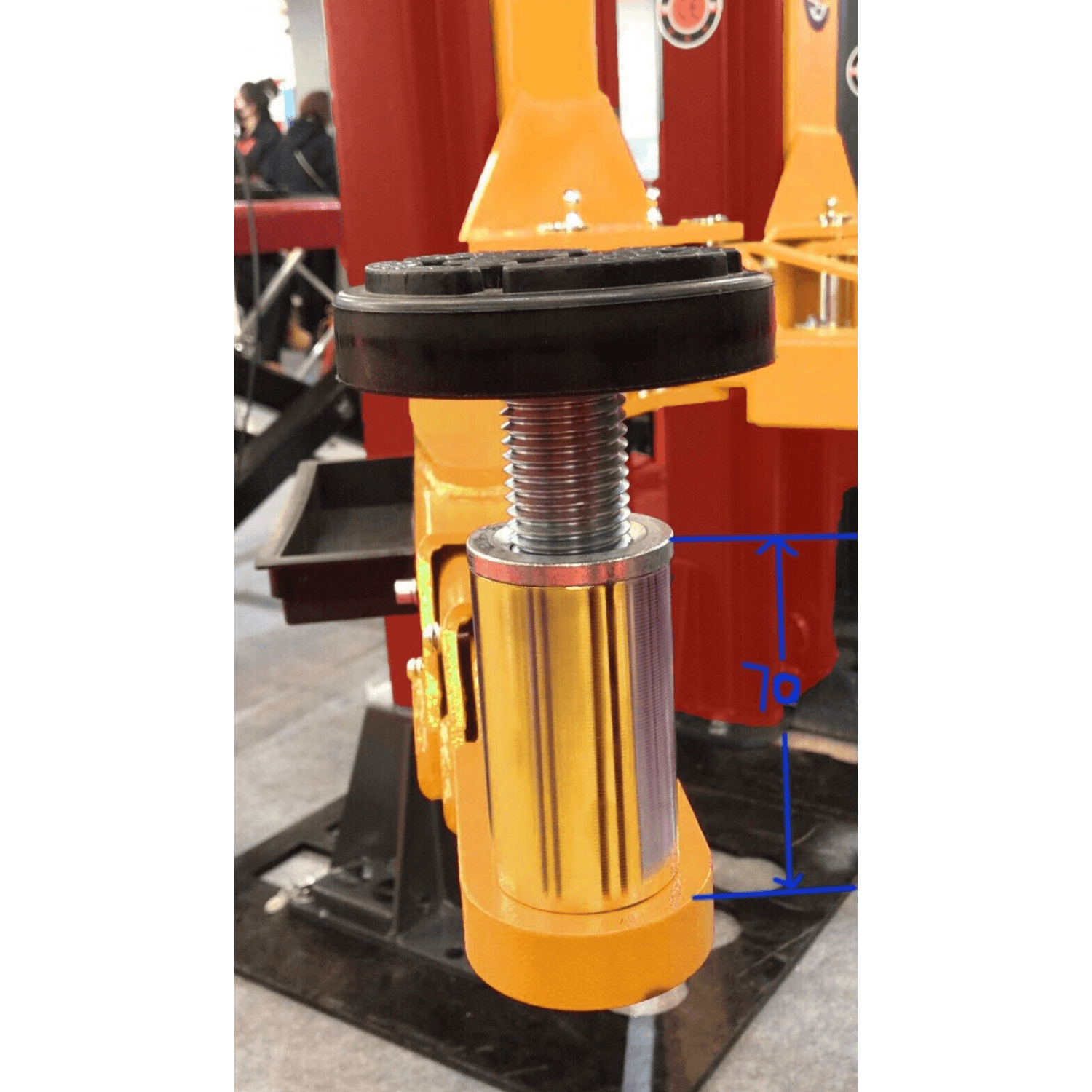

- Comes with extended support adaptor sets of + 30 mm and + 120 mm.
- Overhead safety shutoff bar.
- Feet-protection safety guardrails with tools box.
- High-quality hydraulic system with 220V/60HZ/1PH or 110V/ 60HZ/ 1PH (Optional).
Package Size
- LxWxH (inch): 112"x18"x35.4"
- Weight (lb): 1750
- A forklift or equivalent is required for unloading
