Description
The 40x40x13 ft Container Shelter with Closed Back Panel features a durable 11oz PE tarpaulin and a sturdy PE back panel. This spacious, high-quality shelter provides excellent protection, perfect for various uses in demanding environments.
How to Install the Container Canopy Shelter?
Specification
| Description | Specifications |
| Model | C404013 Dome Container Shelter |

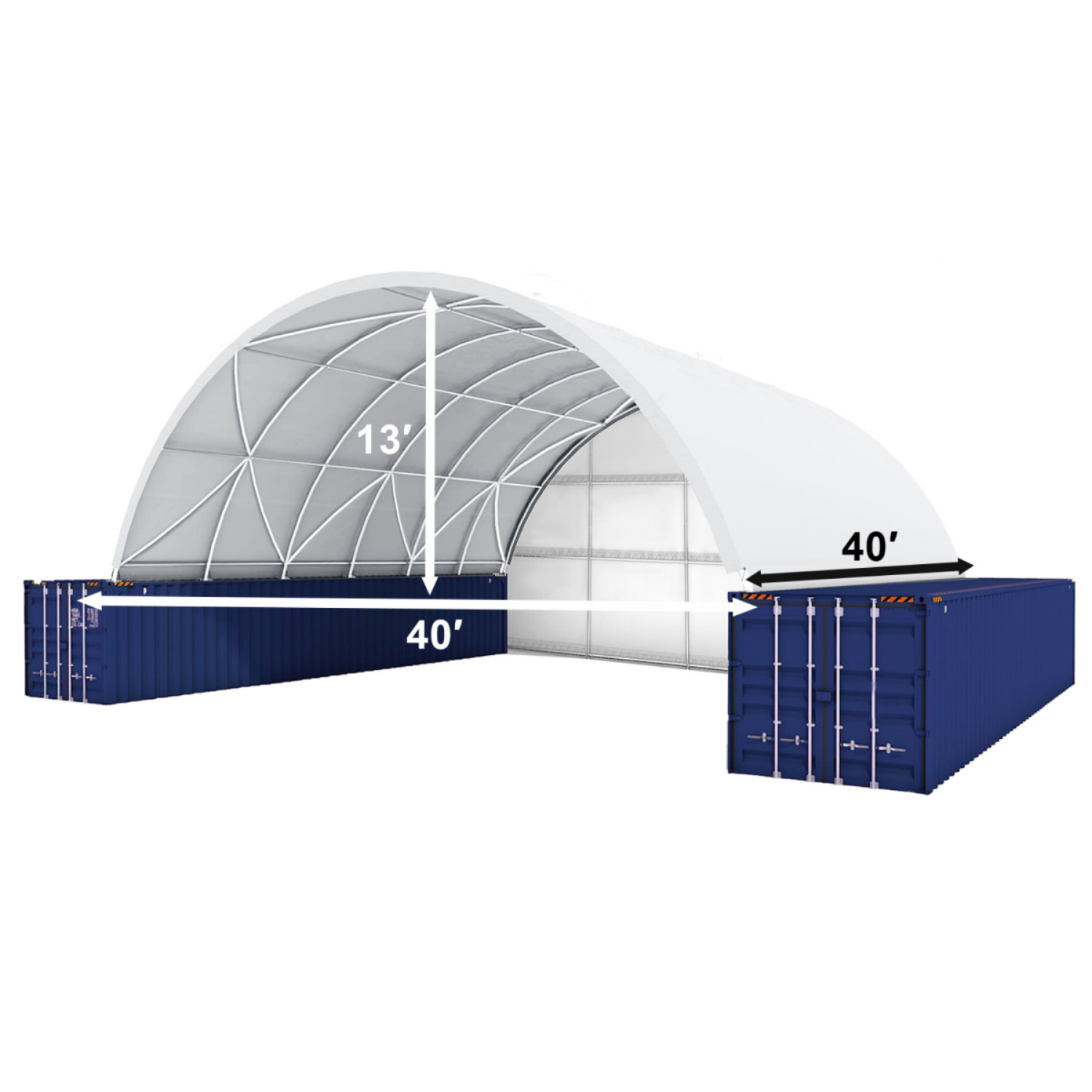

| Dimension (ft) | W40xL40xH13 |
| Frame | Single Truss Galvanized Tube |
| Steel Structure | High-Grade Hot Dip Galvanized Steel |
| Fabric |
|
| Fabric Feature | Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property |
| Temperature resistance | -22 - +158 °F |
| Front/back walls (optional) | |
| Arch Interval | 6.6 ft |
| Arch Ø (mm) | |
| Purlin Ø (mm) | |
| Tension System | Pipe and Ratchet Tie-Down System |
| Easy Installation | Twist lock and clamp installation |
| Weld | No welding required |
| Snow Load | 52 lbs/ft² |
| Wind Load | 56 miles/h |
| Average assembly time for DIY with 4 persons |
|
| Safety | The tarpaulin is PFAS-free and EU REACH compliant. |
| Tarp Lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
| Frame Lifespan | 15+ years |
| Warranty |
|
Note
- The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
- The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.
Feature
- CSA/TUV Snow Rating Report.
- SGS fabric Certificate.
- The tarpaulin is PFAS-free and EU REACH compliant.
- No pole inside, and 100% of the interior space is available.
- Usage: Warehouse, farm tent, equipment storage, car lot, temporary office, livestock house, workshop, parties, big event.
Package Size
Box A
- LxWxH (inch): 124x43.3x29.5
-
Weight (lb): 2160
Box B:
- LxWxH(inch): 96x30x18
- Weight(lb): 595
- A forklift or equivalent is required for unloading.
Attention
(1) Keep the work area clean. Cluttered areas invite injuries.
(2) Keep children away. Be aware of personal safety.
(3) It is easy to assemble if according to our assembly manual. Improper assembly may cause unnecessary mistakes.
(4) Be aware of possible windy conditions; fasten the base in concrete if this situation may occur. Remove the cover during the hurricane.
(5) Clean off snow in time and do not allow snow to sit for extended periods of time.
(6) Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not expose to open flame.
(7) This unit is supposed to be set up on the inner edge of the container, if you want to set up on the outer edge of the container, you will need extra support tubes.
Product FAQ
Customer Reviews
Very pleased with container canopy and back wall. Looks very good and everything was relatively easy to put together. Only warning would be that setup takes a little longer than advertised (at least for me and 2 workers). Roof takes about a week and back wall took about the same because we wanted to pour footings and it takes a long time to string rope through holes.
Only been up a week and already have neighbors coming by asking where I got and looking to put one up themselves!
