Description

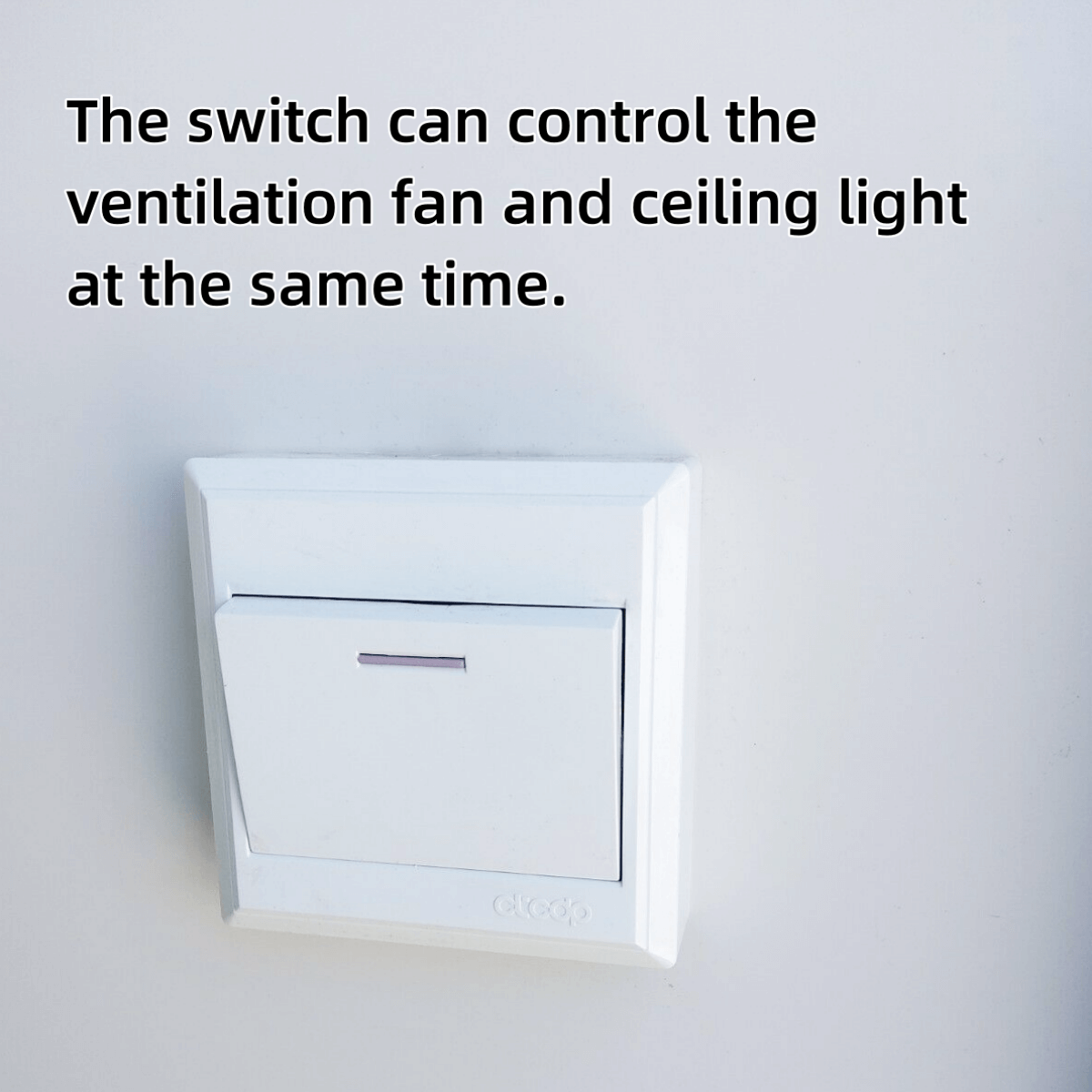

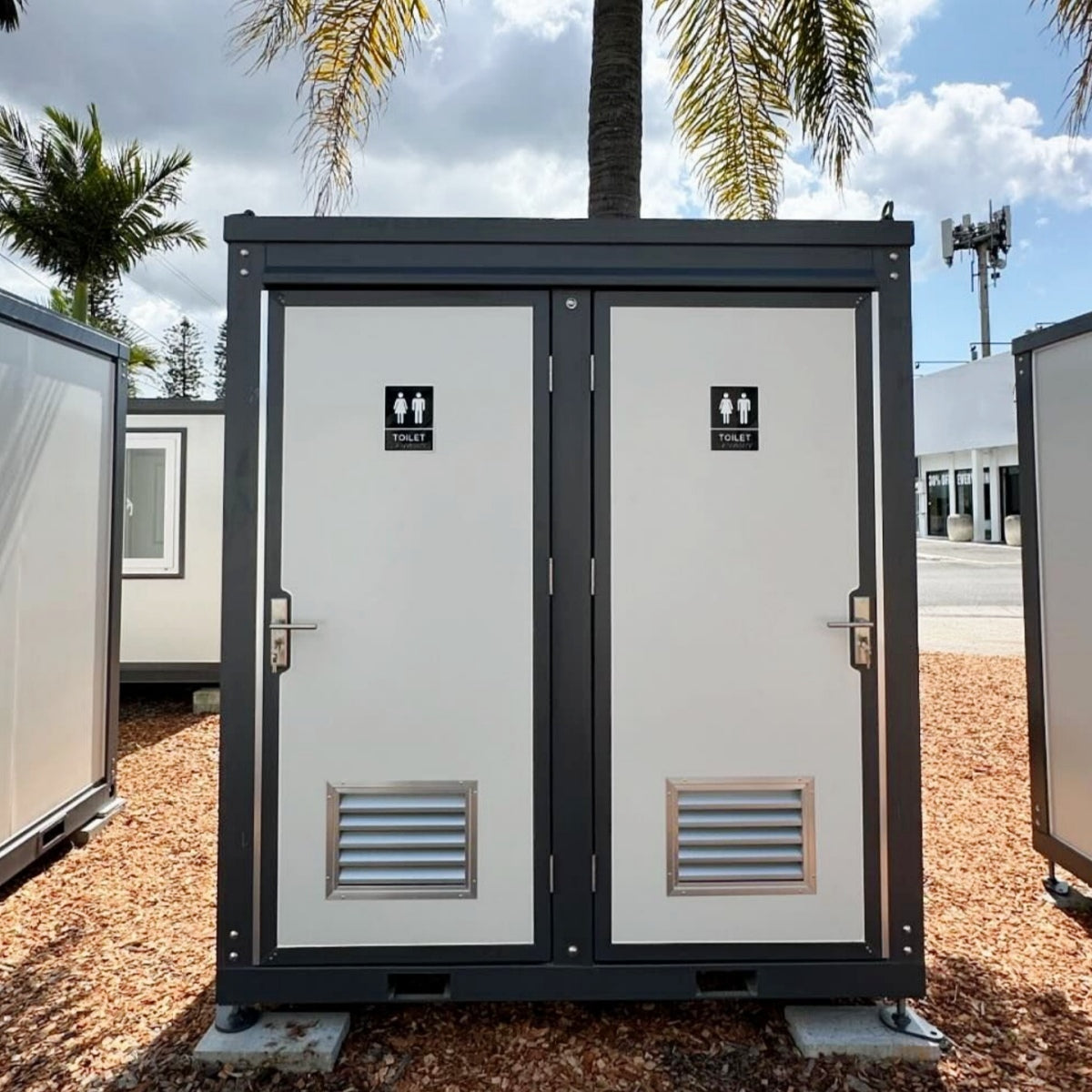

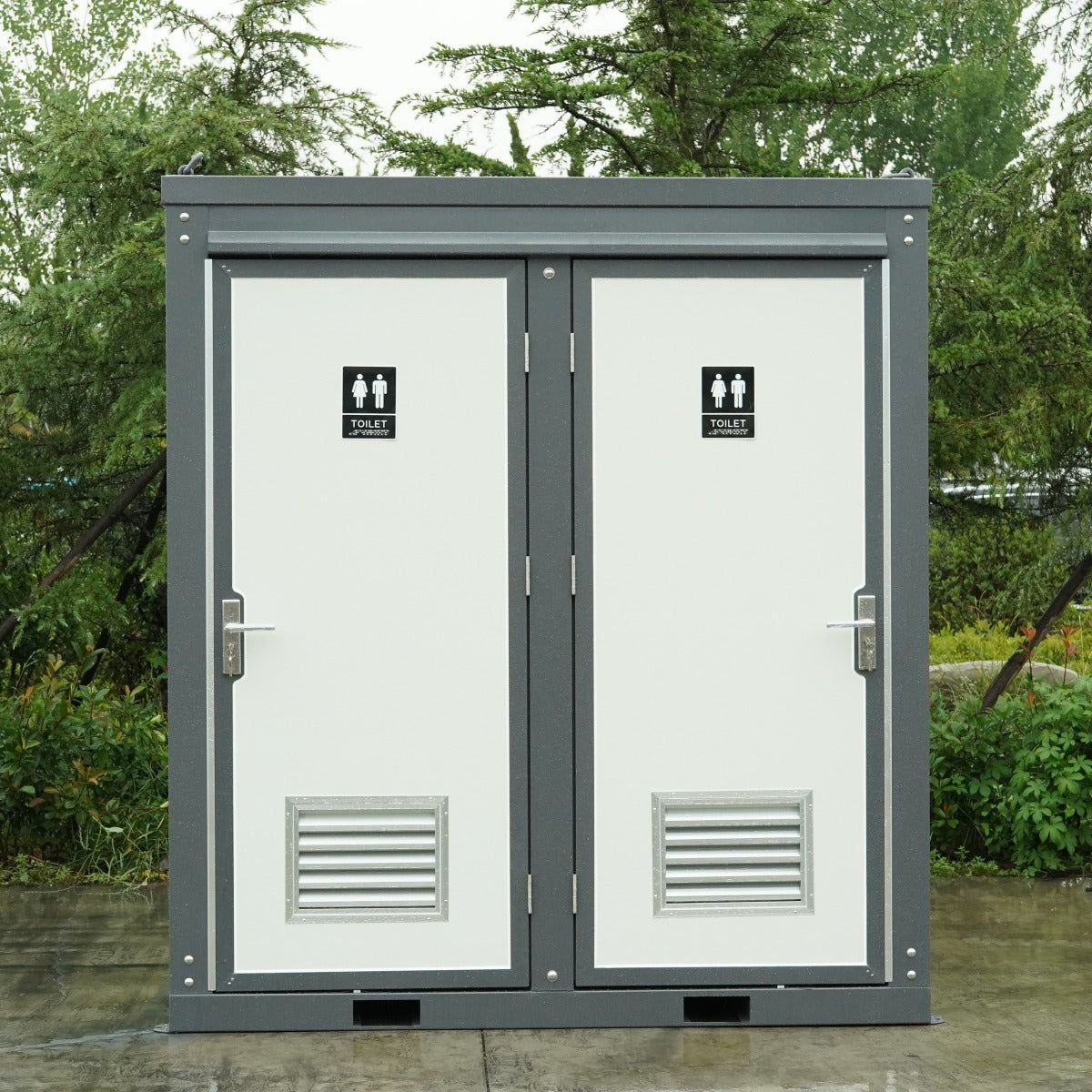

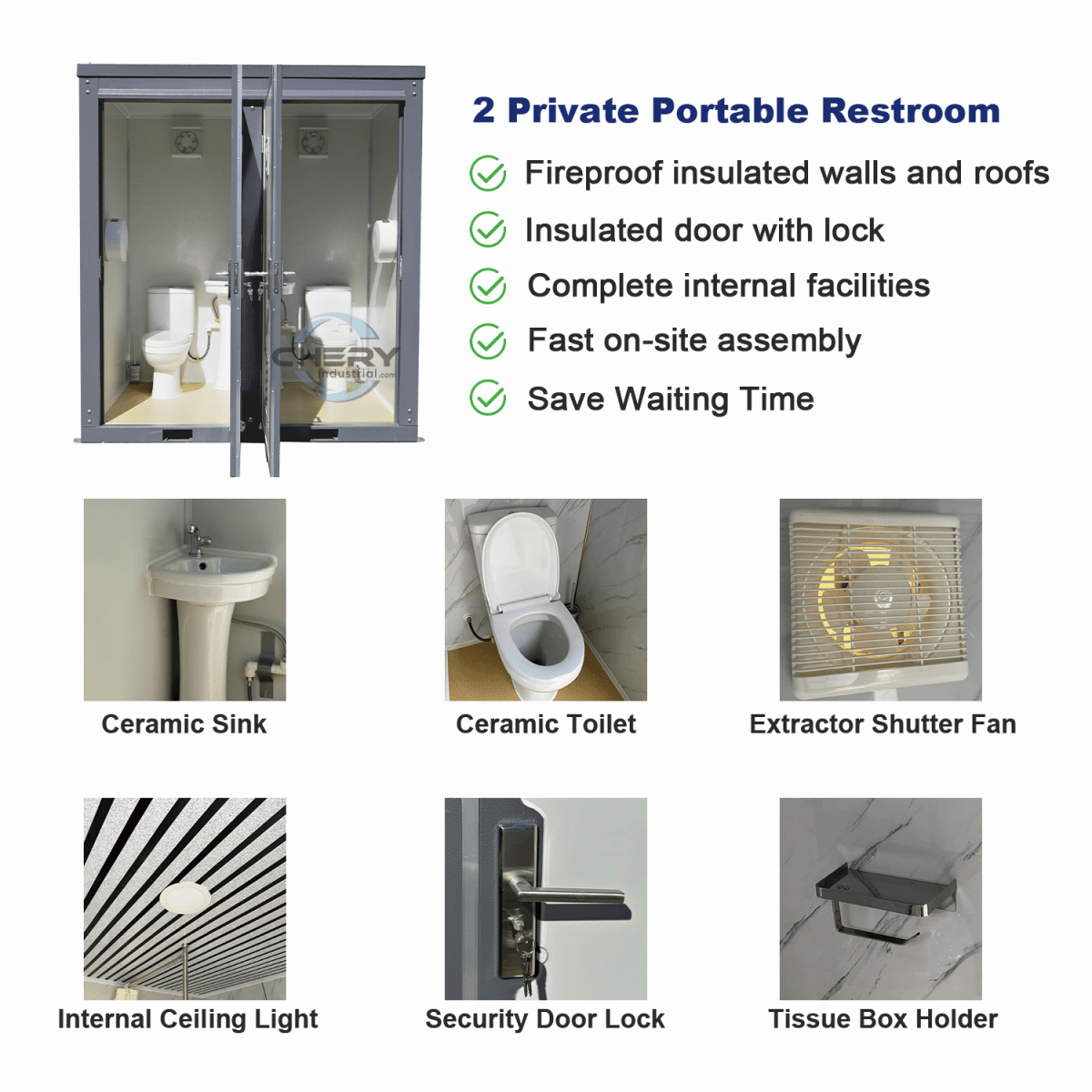

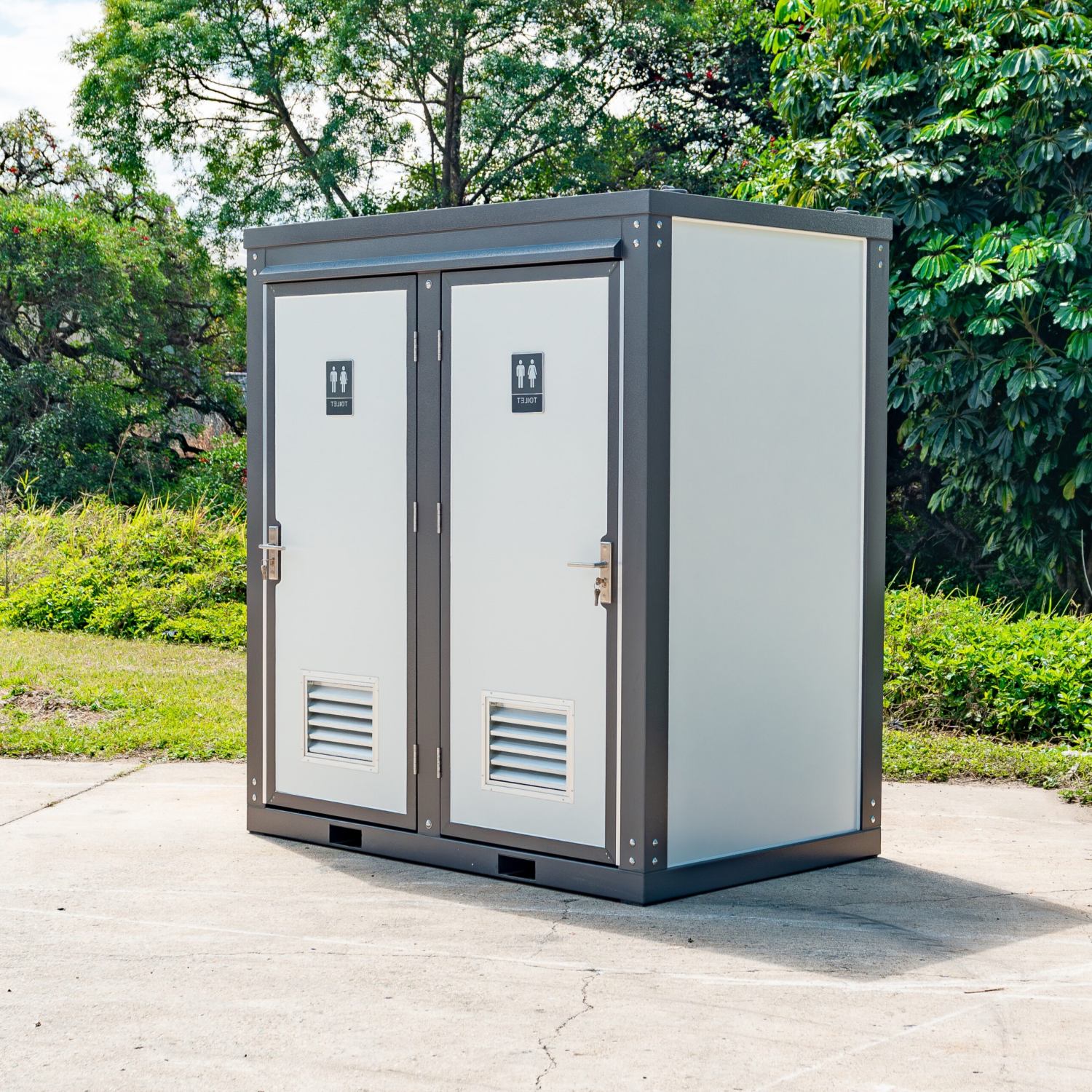

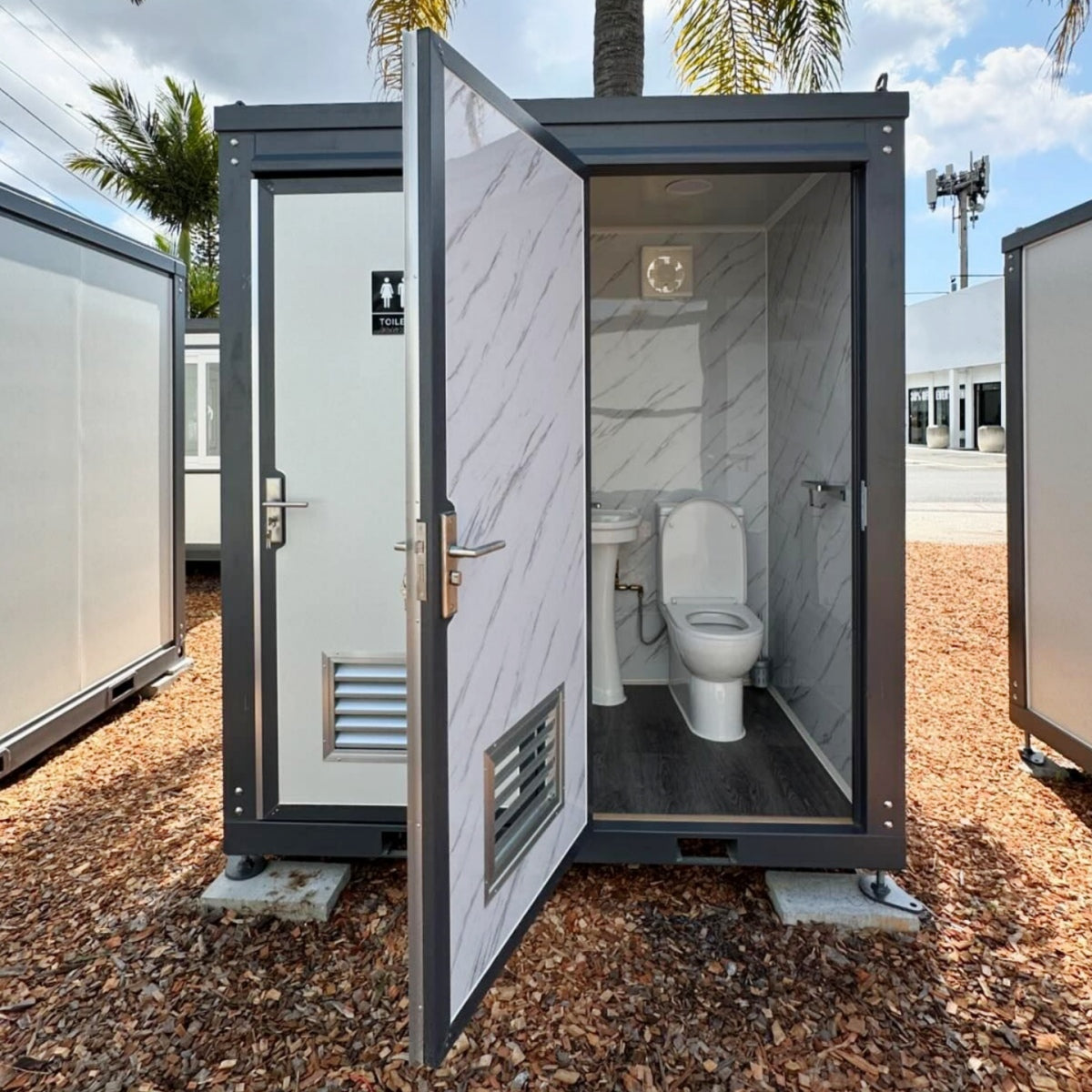

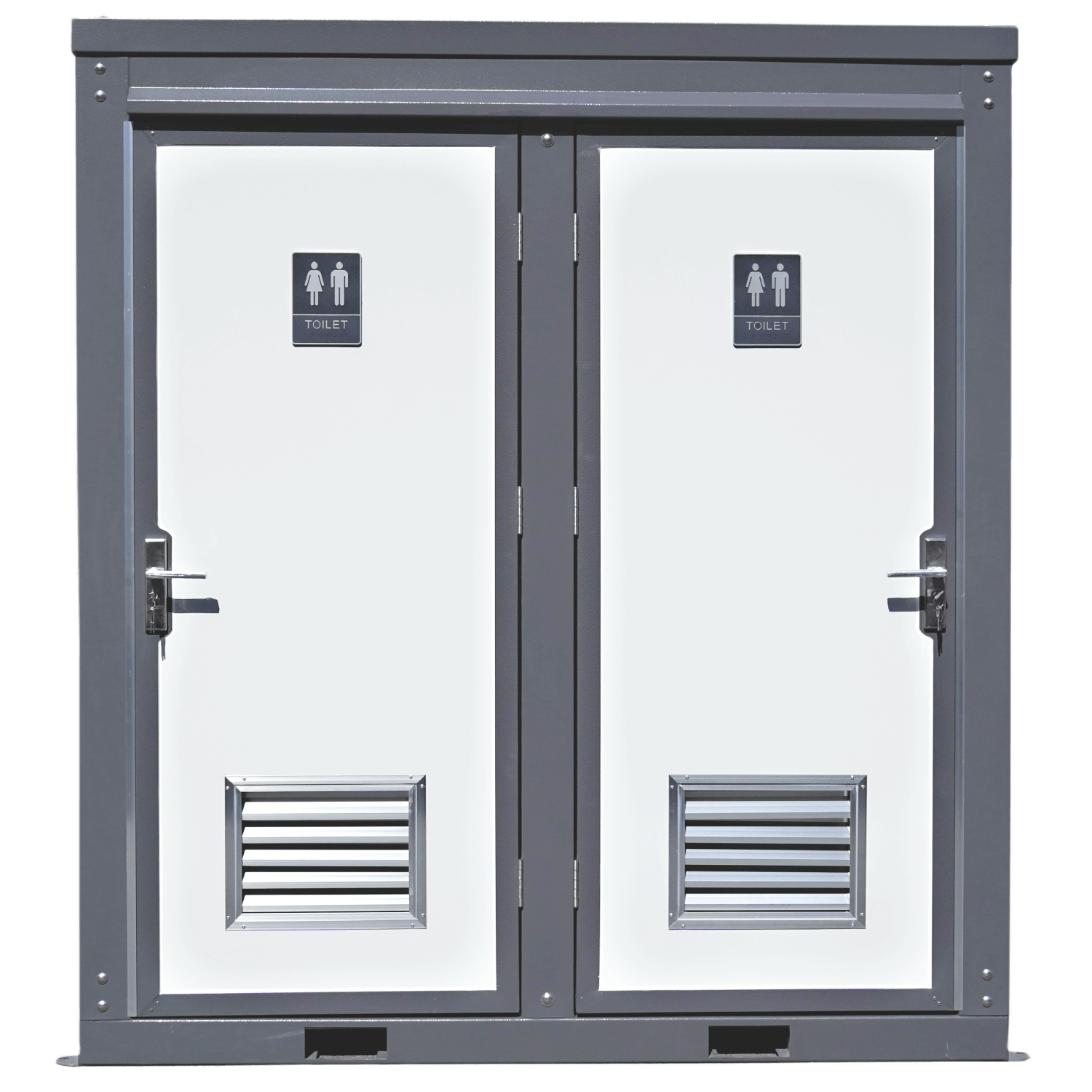

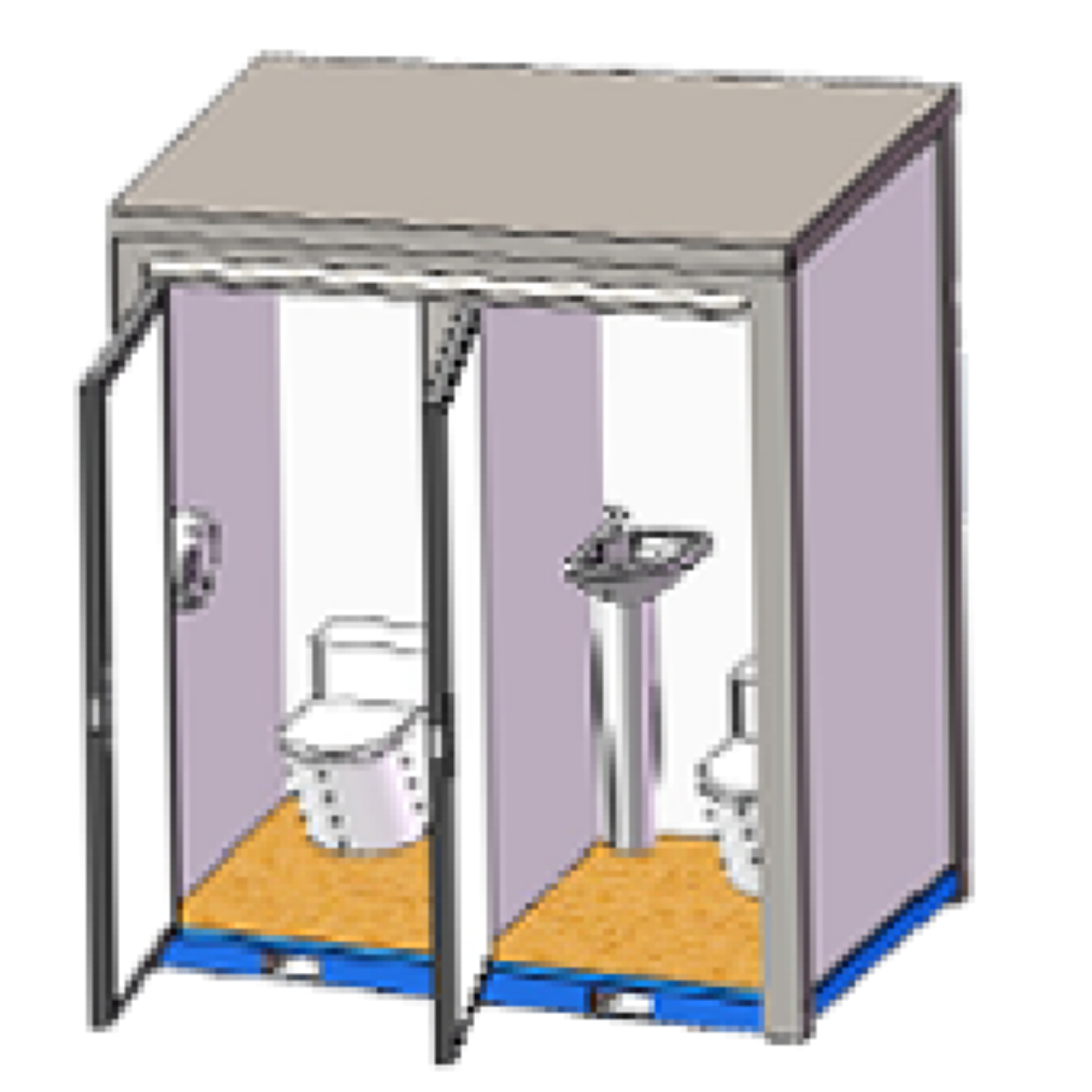

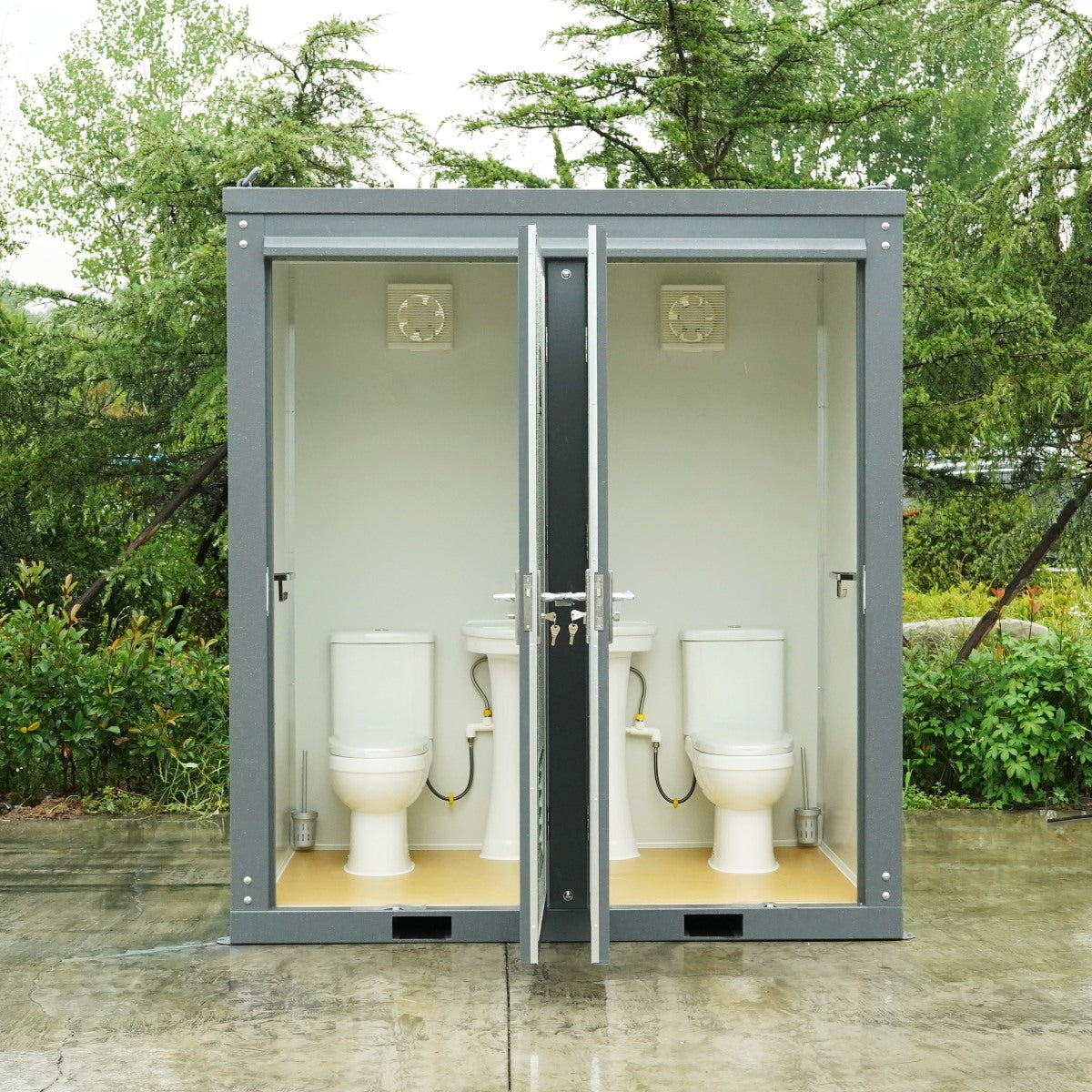

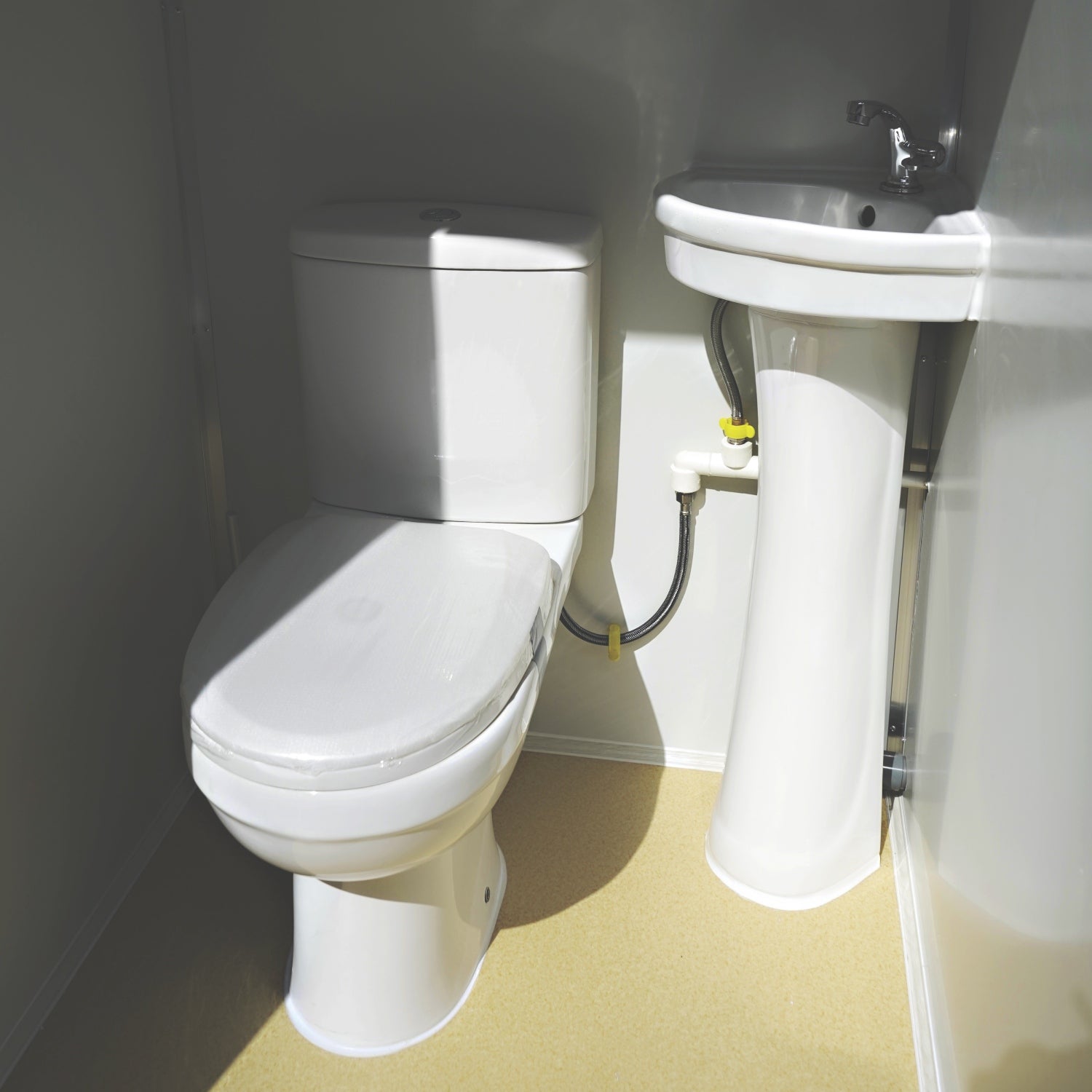

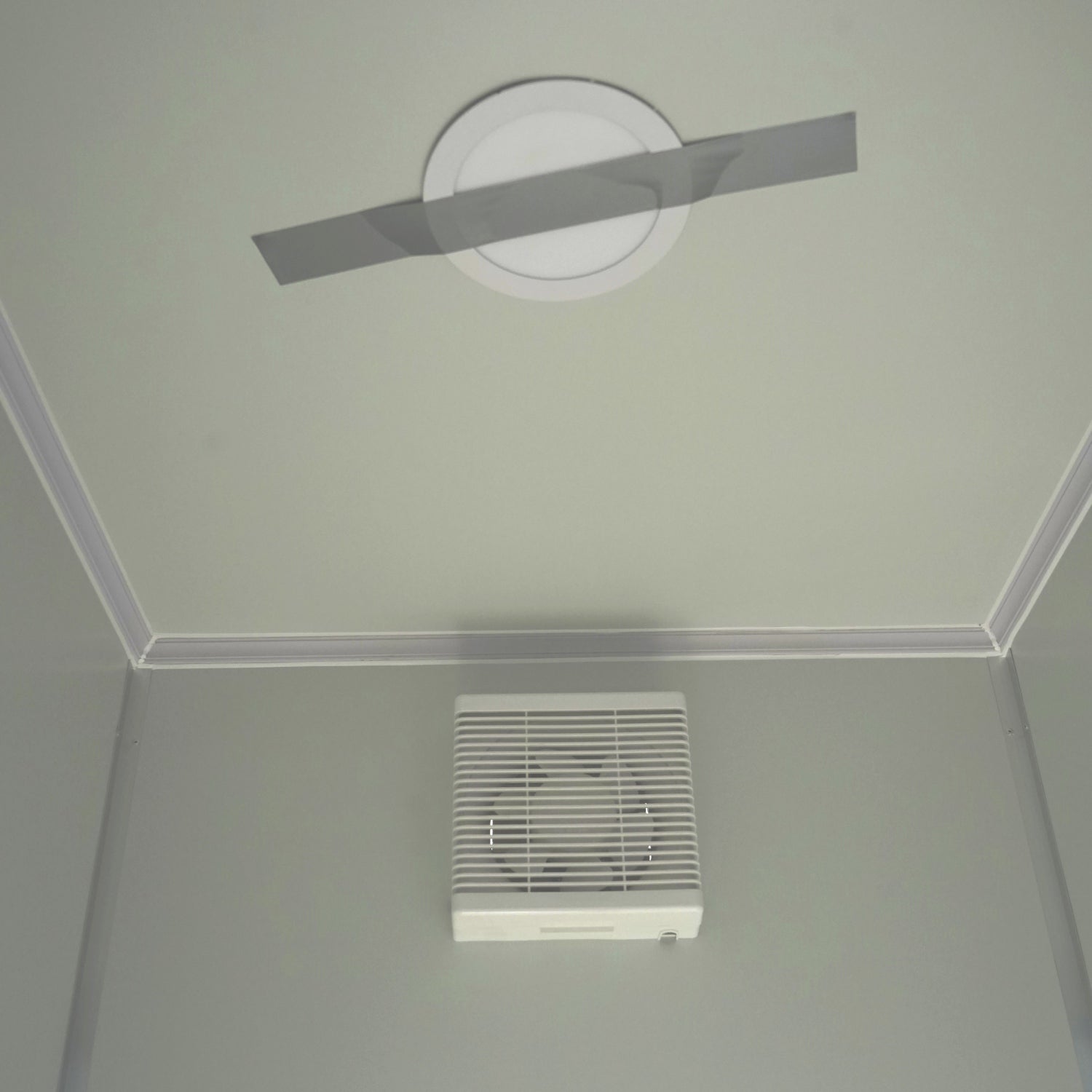

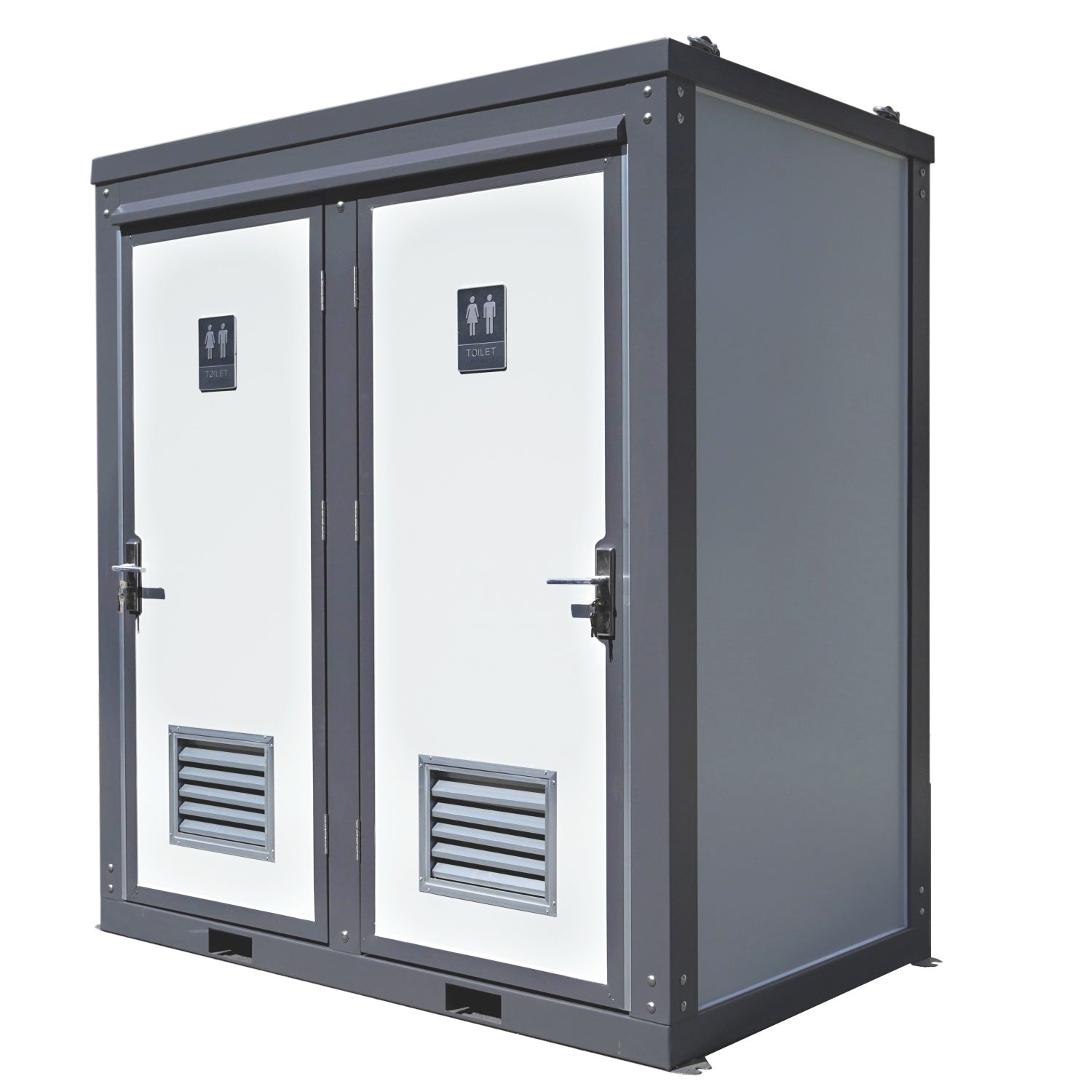

This Bastone 2 Private Stalls Portable Restroom is designed to provide porta potties to construction sites and special outdoor public events for people’s convenience. This portable restroom booth gives you peace of mind that you can have a clean and simple restroom during outdoor celebrations and events. The Bastone 2 private stalls portable restroom features a toilet, a sink, a light, a ventilation fan, and a vent, and it is a full-service portable restroom kiosk that is similar to a bathroom in your house. Restrooms and toilets are an everyday, inevitable part of life, and we understand your urgency, we want to bring pleasure and cleaning to you.
Specification
| Description | Specifications |
| Model | 2 Private Portable Restroom |

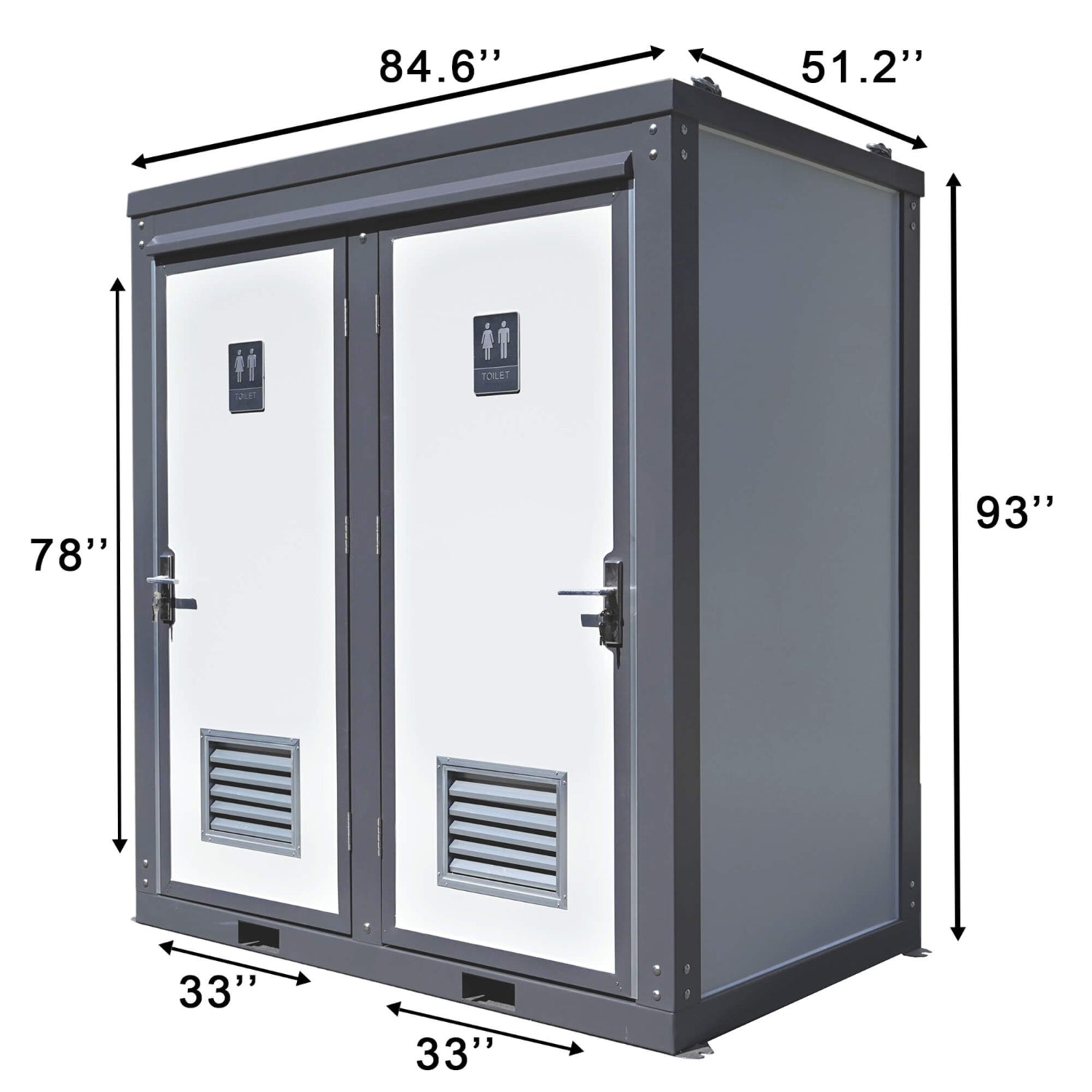

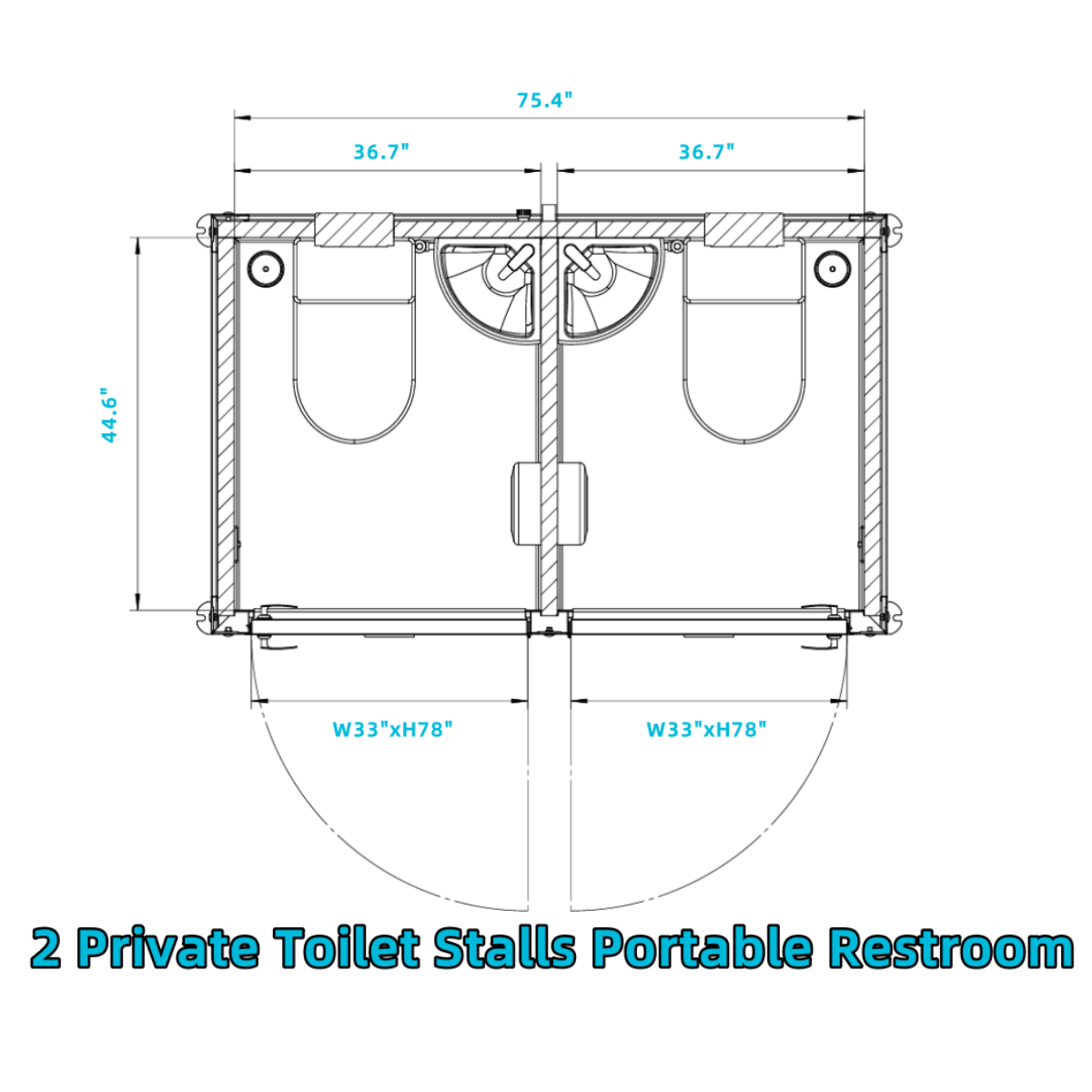

| Dimension (LxWxH) | 84.6"x51.2"x93" |
| Interior Dimension (LxW) | 36.7"x 44.6" per room |
| Door Size | W 33" x H 78" |
| Net Area | 11.4 ft²/room |

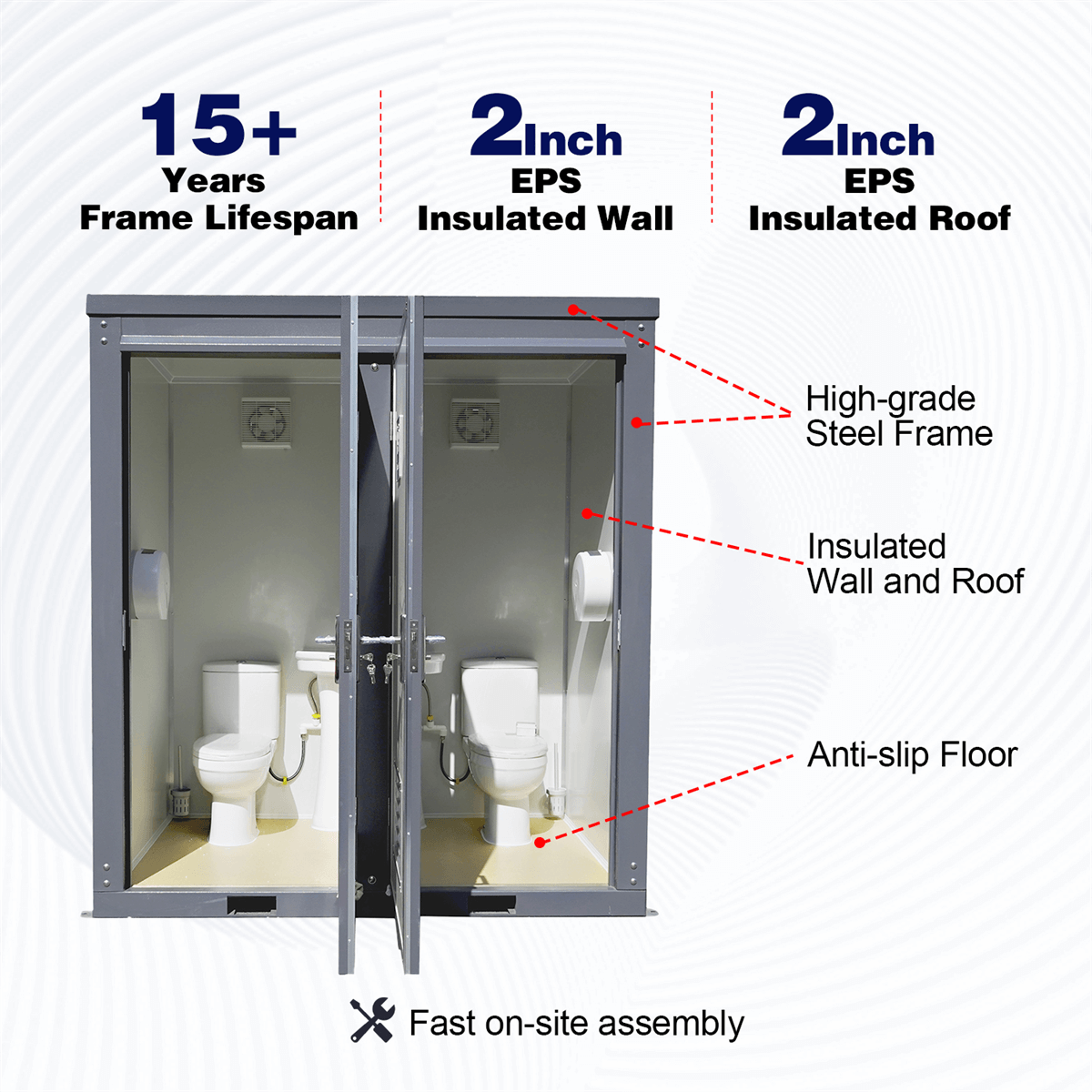

| Frame | Steel |
| Surface Coating | High-Temperature Resistant Paint |
| Roof Material | 2-inch EPS fire-resistant & insulated roof panels |
| Wall Material | 2-inch EPS fire-resistant & insulated wall panels |
| Floor Material | Anti-skid and wear-resistant floor leather+Hard PVC board |
| R-value | 7.09~8.27 |
| Doors |
|
| Circuit Breaker Spec | 13~16 Amps |
| Power Supply | 110V~220V |
| Wire info | 3 core 2.5 sqmm |
| Wiring Instructions | White Wire: Neutral Wire Black Wire: Live Wire Green or Yellow-green Wire: Earth Wire |
| Flush volume | 1.6 gpf |
| Inlet Pipe Material | PPR Pipe |
| Inlet Pipe Inner diameter | 4/5 inch |
| Outlet Pipe Material | PVC Pipe |
| Outlet Pipe Inner diameter |
|
| Lowest Pipe Working Temperature |
14℉ (if iced, please use 122℉ water to melt) |
| Fire-proof Level | B2 |
| Wind Load | 56 MPH |
| Snow Load | 125 lb/sqft |
| Forklift Pockets | Dimension: W7"x H3" Distance between forklift pocket: 28" |
| Lifespan | 15+ Years |
| Warranty | 1 Year |
Set up

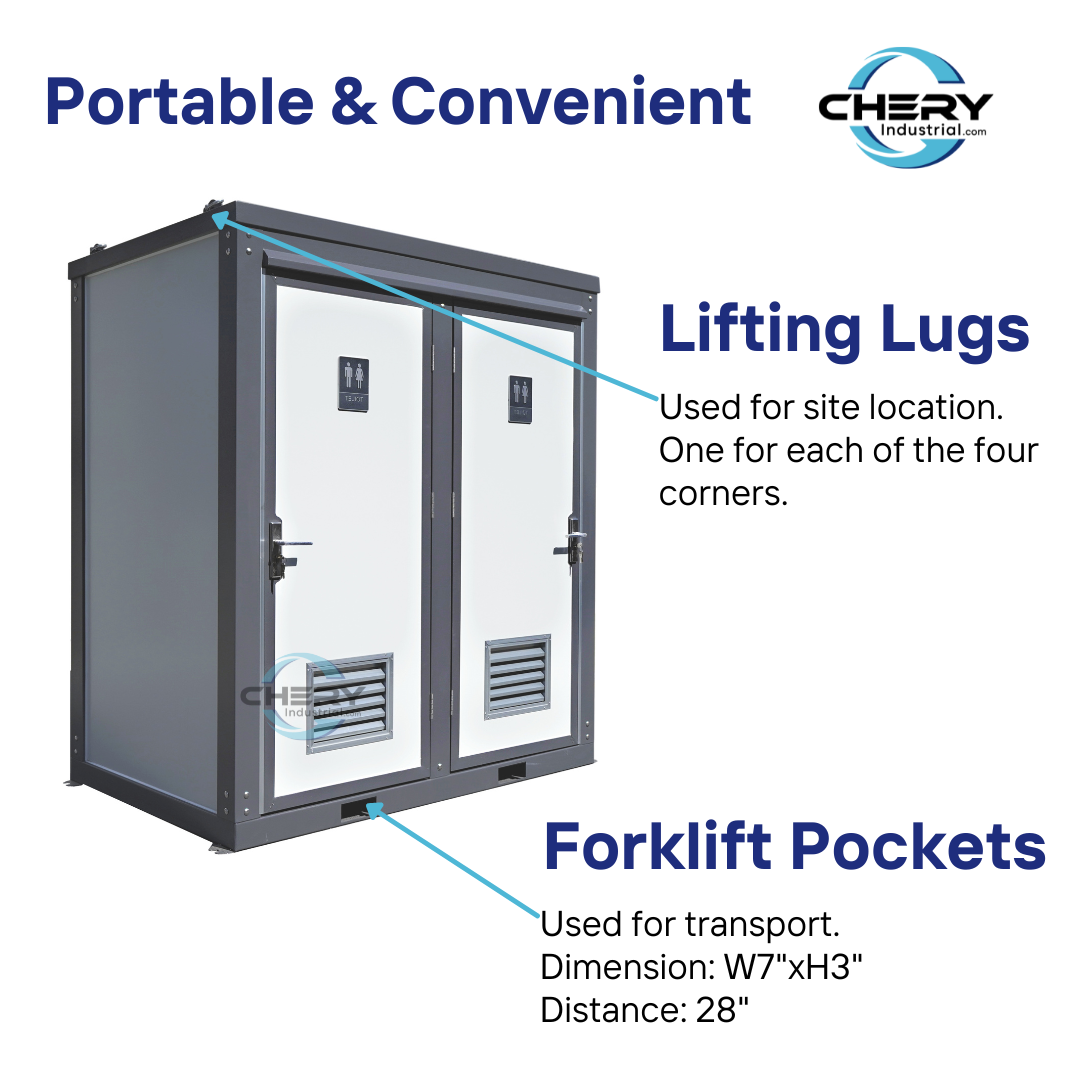

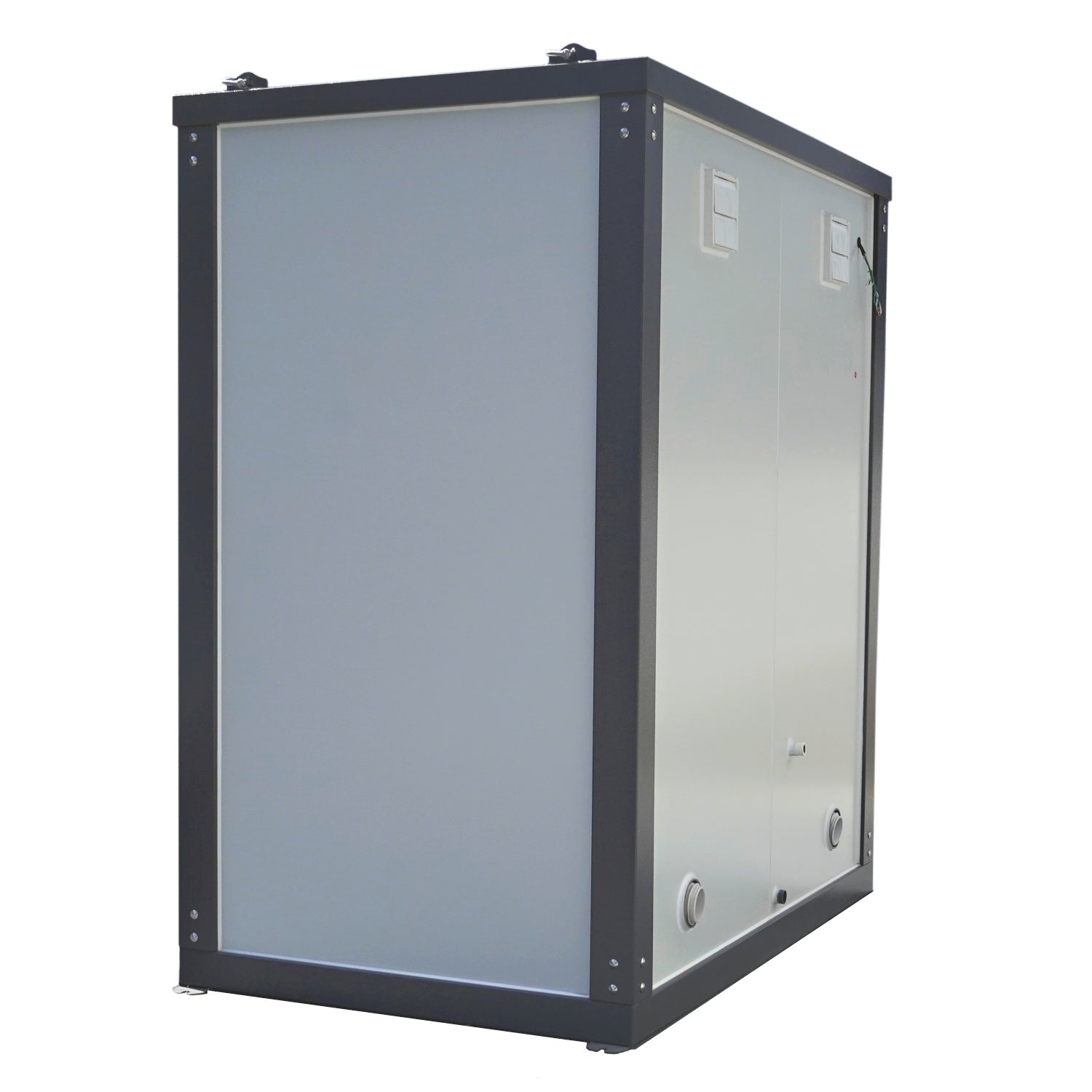

There are 4 lifting lugs for transportation on the top and a forklift slot on the bottom. The equipment needs to be unloaded using a crane or forklift.

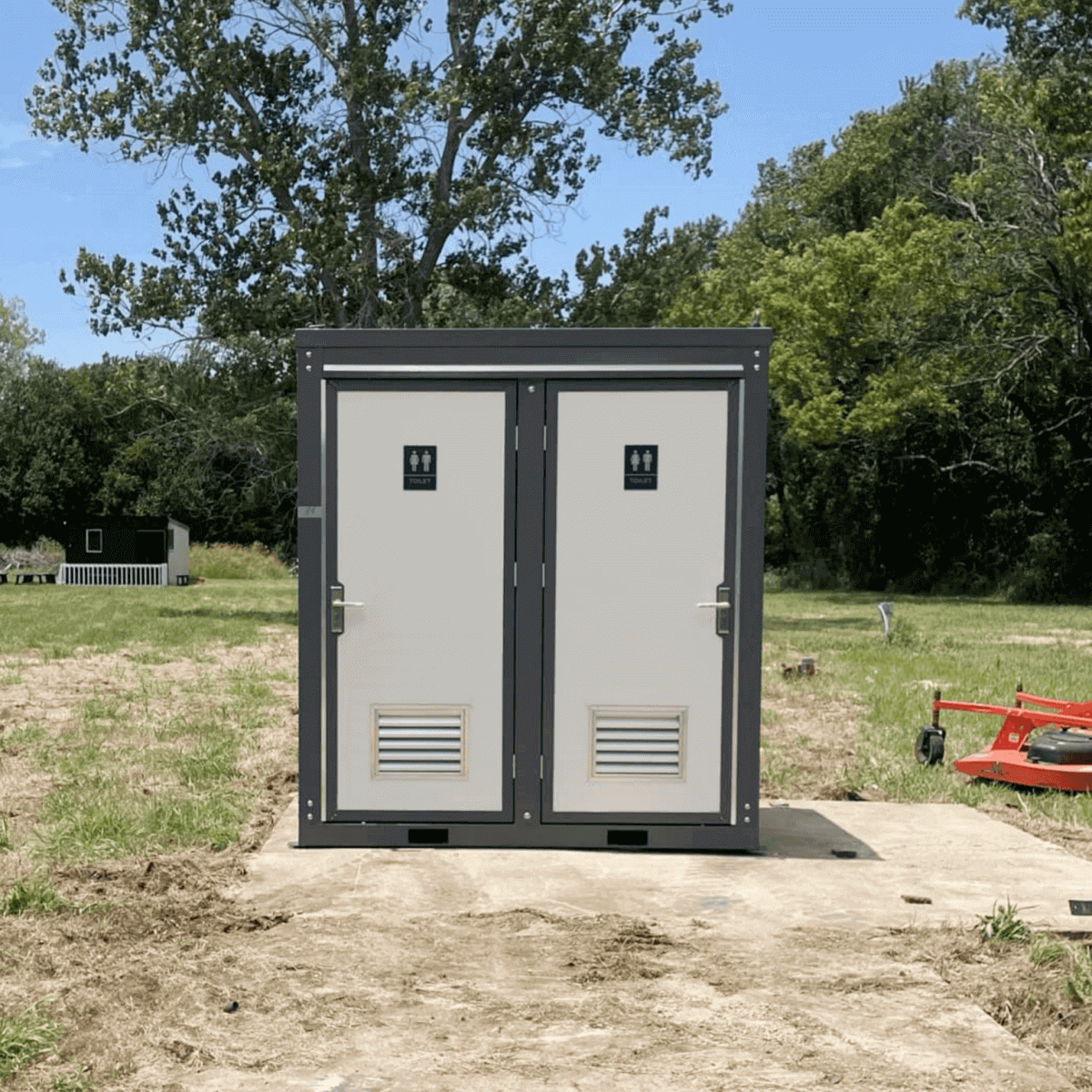

Footing options
- Concrete slab or pads
- Compacted ground
- Concrete or Steel stumps
- Note: The finished height of the surface must be level. Consulting a qualified person is recommended.
Note
The customer must arrange for a licensed Electrician to supply and Install all wiring.

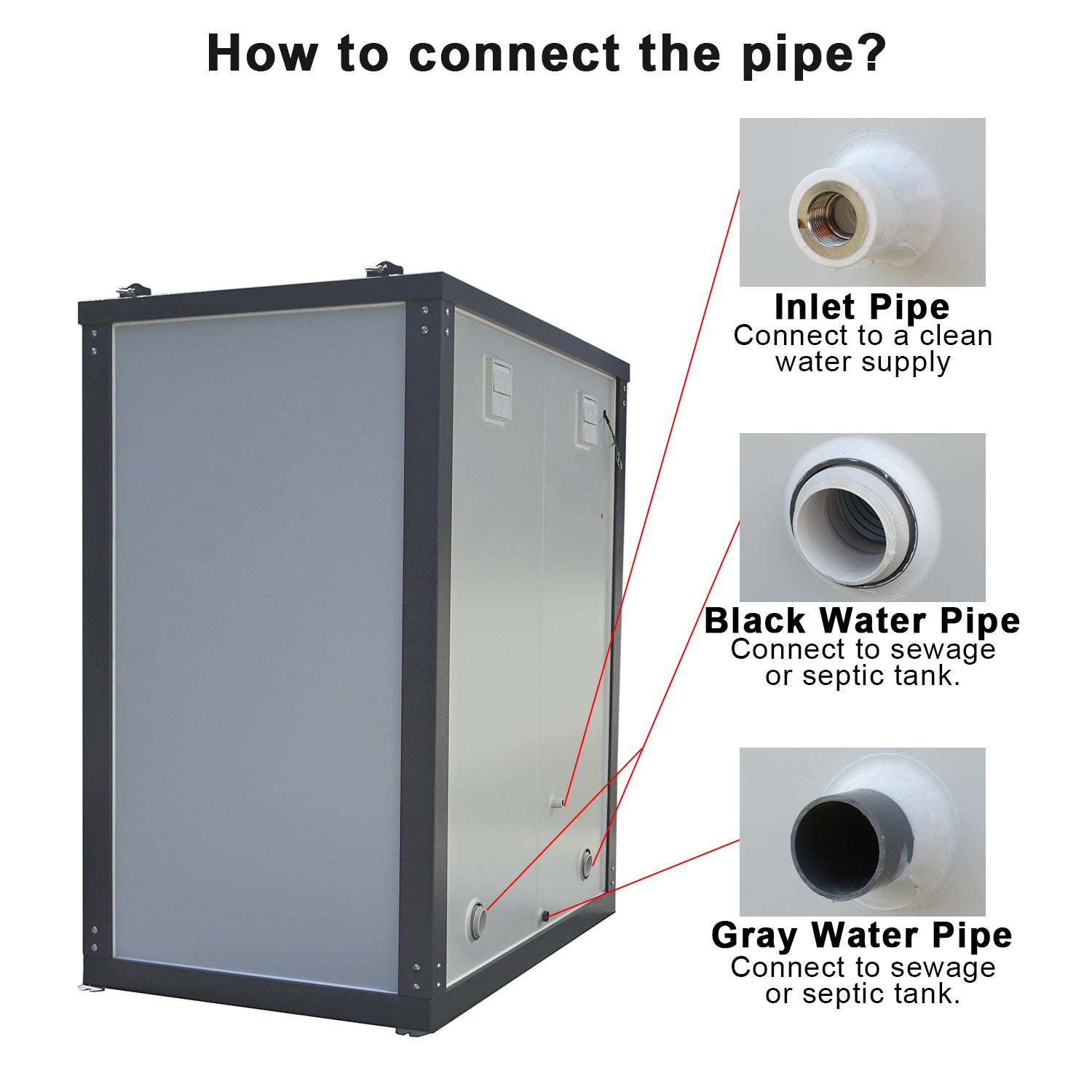

All pipe connection needs thread seal tape, instead of glue, to seal.
Our Portable Restrooms need to be supplied with city water or well pump water, and all portable toilet "sewage" needs to be connected to the city sewer system or a simple septic system.
If this Bastone 2 Private Toilet Stalls Portable Restroom is used on a construction site, we recommend you connect toilets to the sanitary sewer system and connect water to the pipe system. If not, you may need tanks outside the structure for waste.
- If it's a concrete floor, please use twist-n-lock anchors on 4 corners of the portable restroom, and use wire rope to connect the anchor and the top corner of the portable restroom.
- If it's a soil floor, please use 20 inches - 28 inches ground nails on 4 corners and use wire rope to connect the anchor and top corner of the portable restroom.

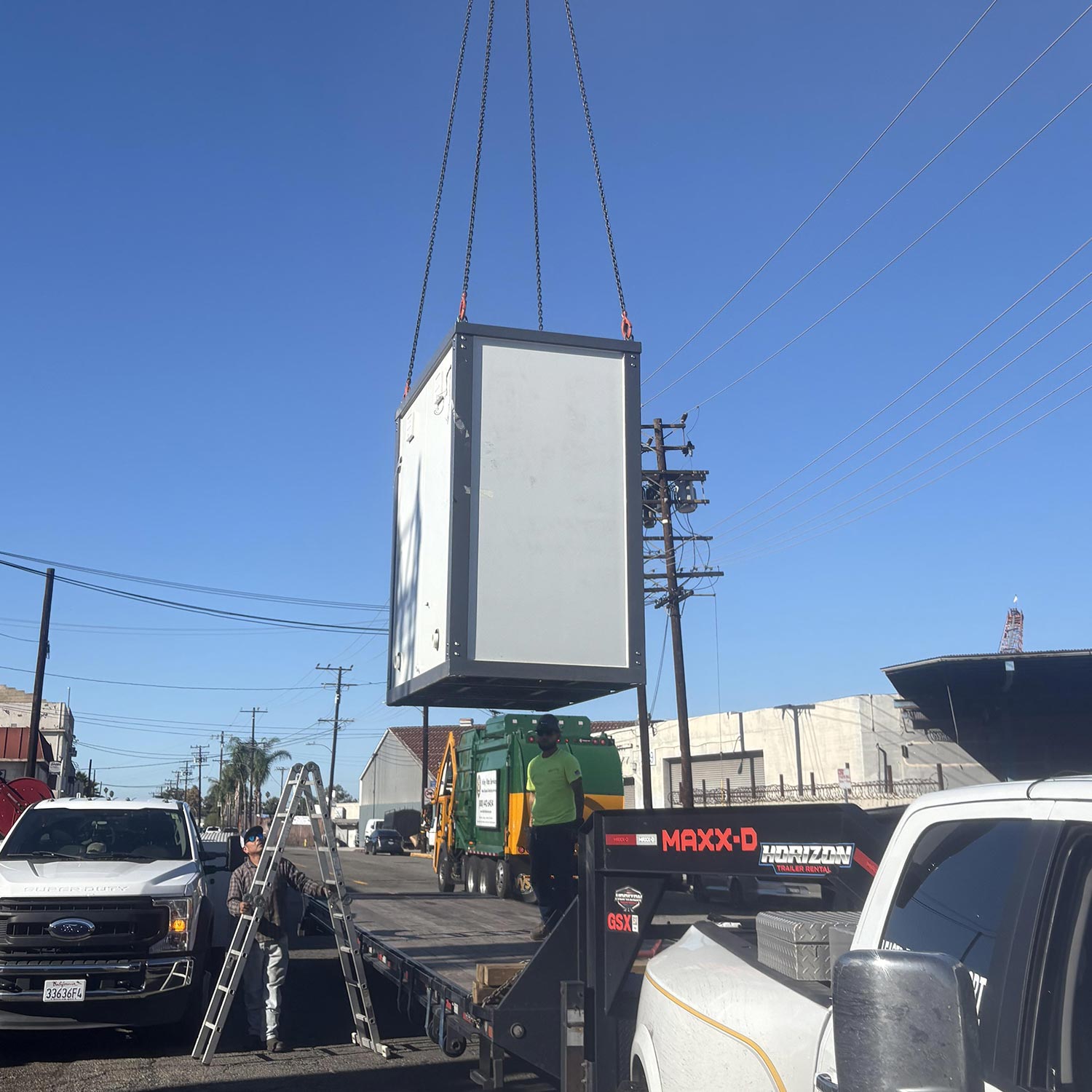

Unloading reference
Feature

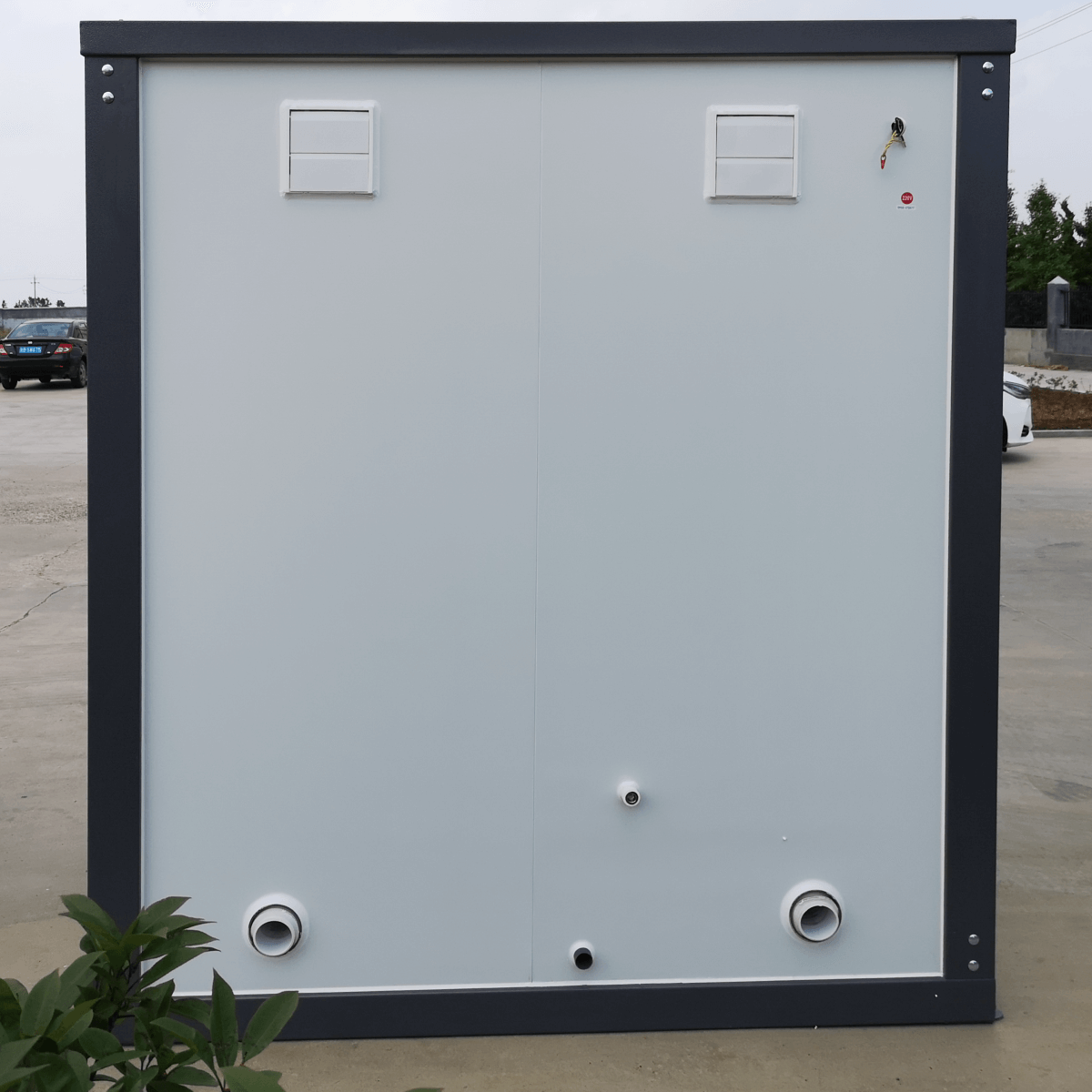

- 3" black water/waste exhaust flexible hose (easily slide your 3" PVC pipe onto flex fitting for waste)
- 1" PVC water outlet exhaust port (for sink water)
- Model Number: 110V Public Restroom with Double Close Stool
- Material: High-Temperature Resistant Paint
- Floor Material: Rigid PVC board
- Wall Material: Internal UV board, with a layer of plywood on the outside
- Door: Security Door
Package Size
- L*W*H (inch): 85x51x95
- Weight (lb): 1339
- Forklift or equivalent is required for unloading
