Description

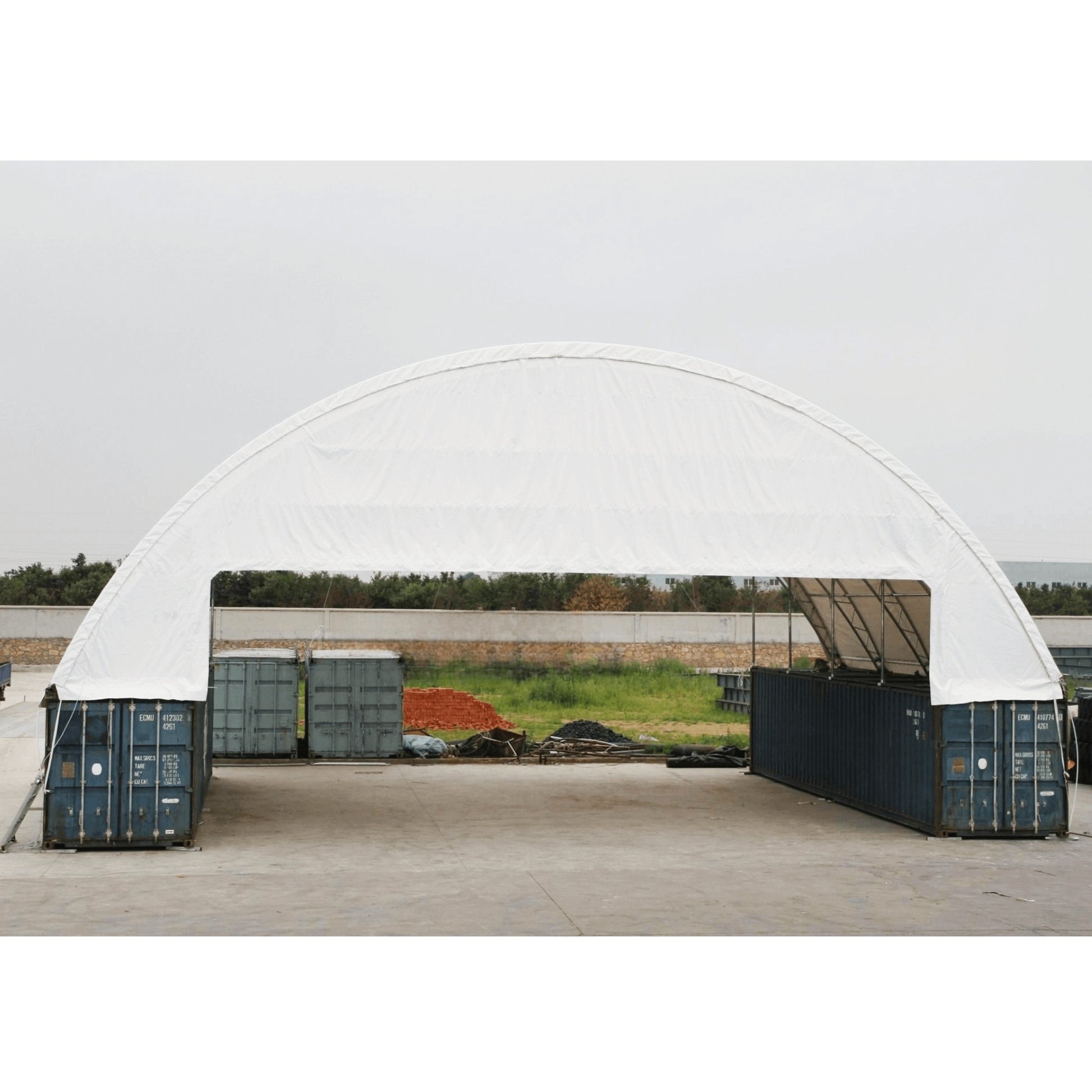

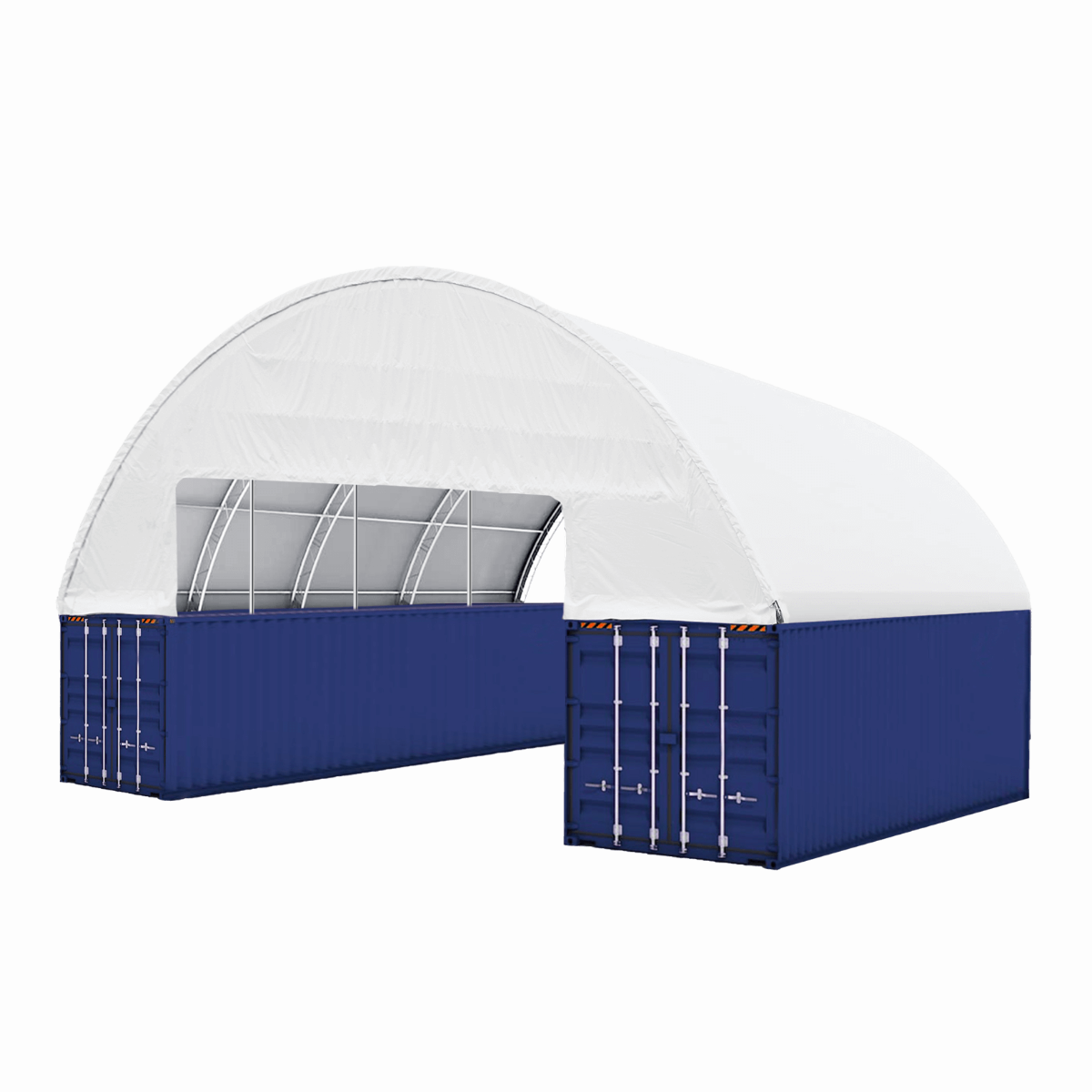

Introducing the Container Shelter: a remarkable fusion of innovation and practicality that sets a new standard for outdoor coverage. Standing at an impressive 60'x40'x20', the Double Truss Shipping Container Canopy Shelter redefines the realm of protection and versatility. Crafted to address a myriad of needs, this cutting-edge shelter promises to revolutionize the way we safeguard assets, projects, and events against the elements.

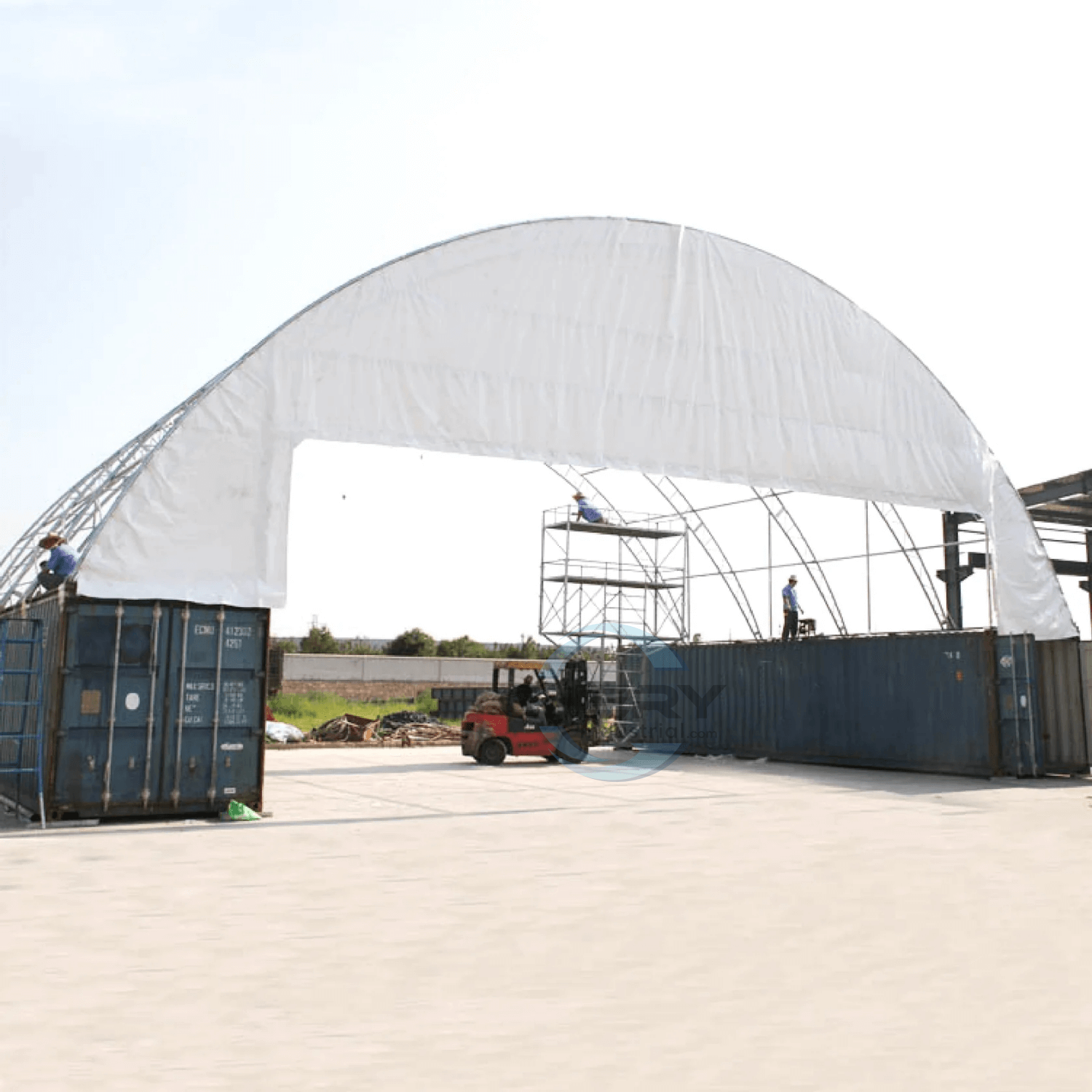

How to Install the Container Canopy Shelter?

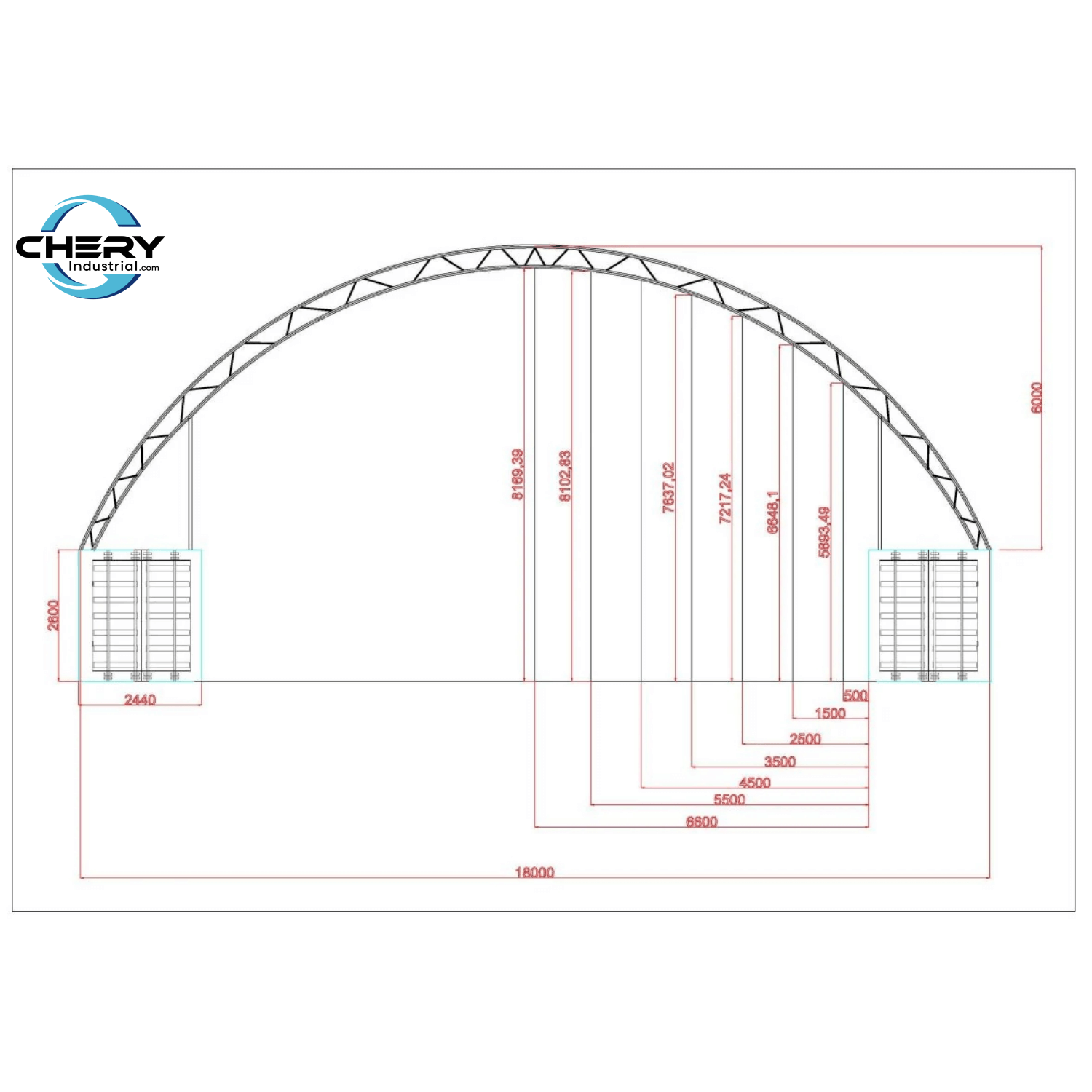

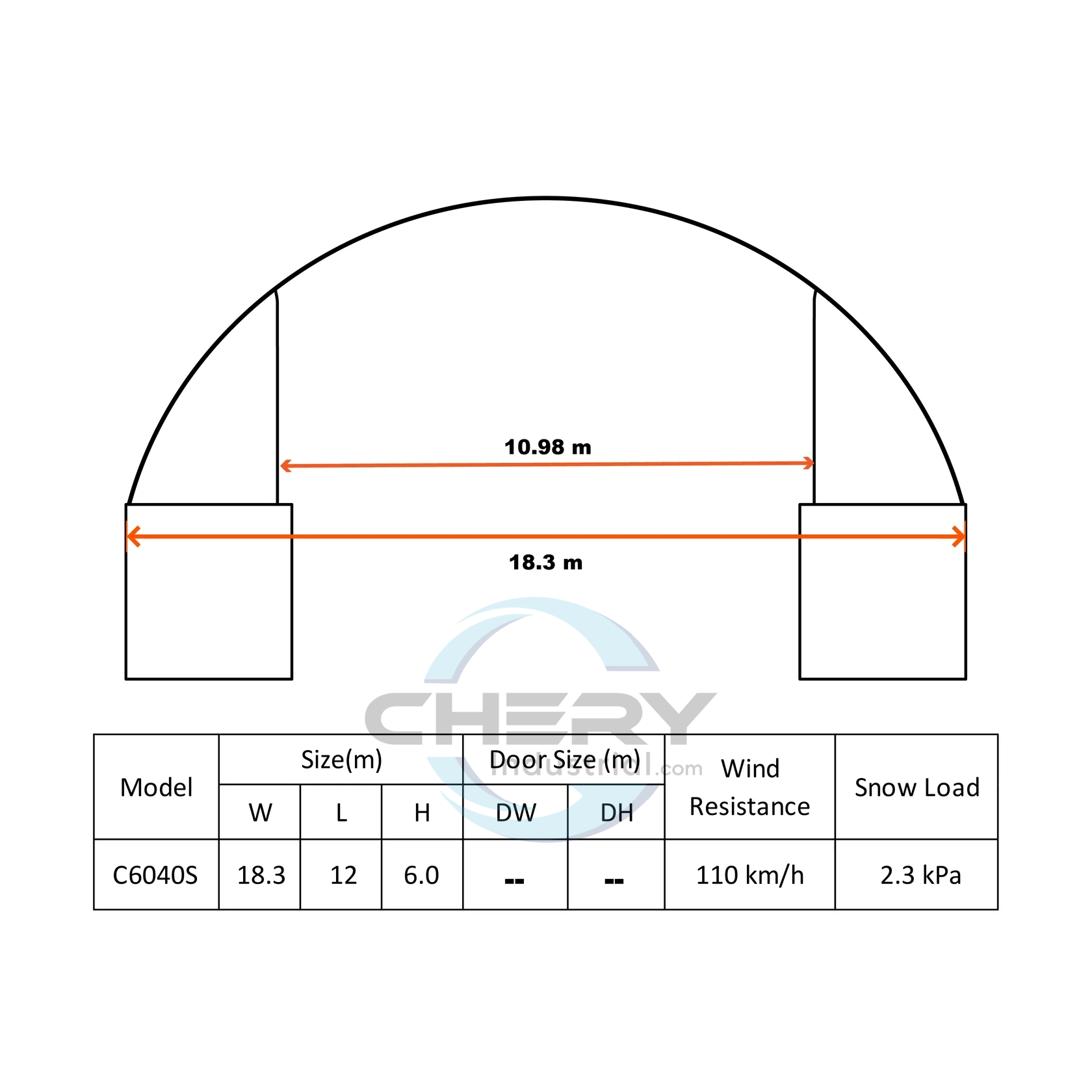

Specification
| Description | Specifications |
| Model | C604020 Dome Container Shelter |
| Dimension (ft) | W60xL40xH20 |

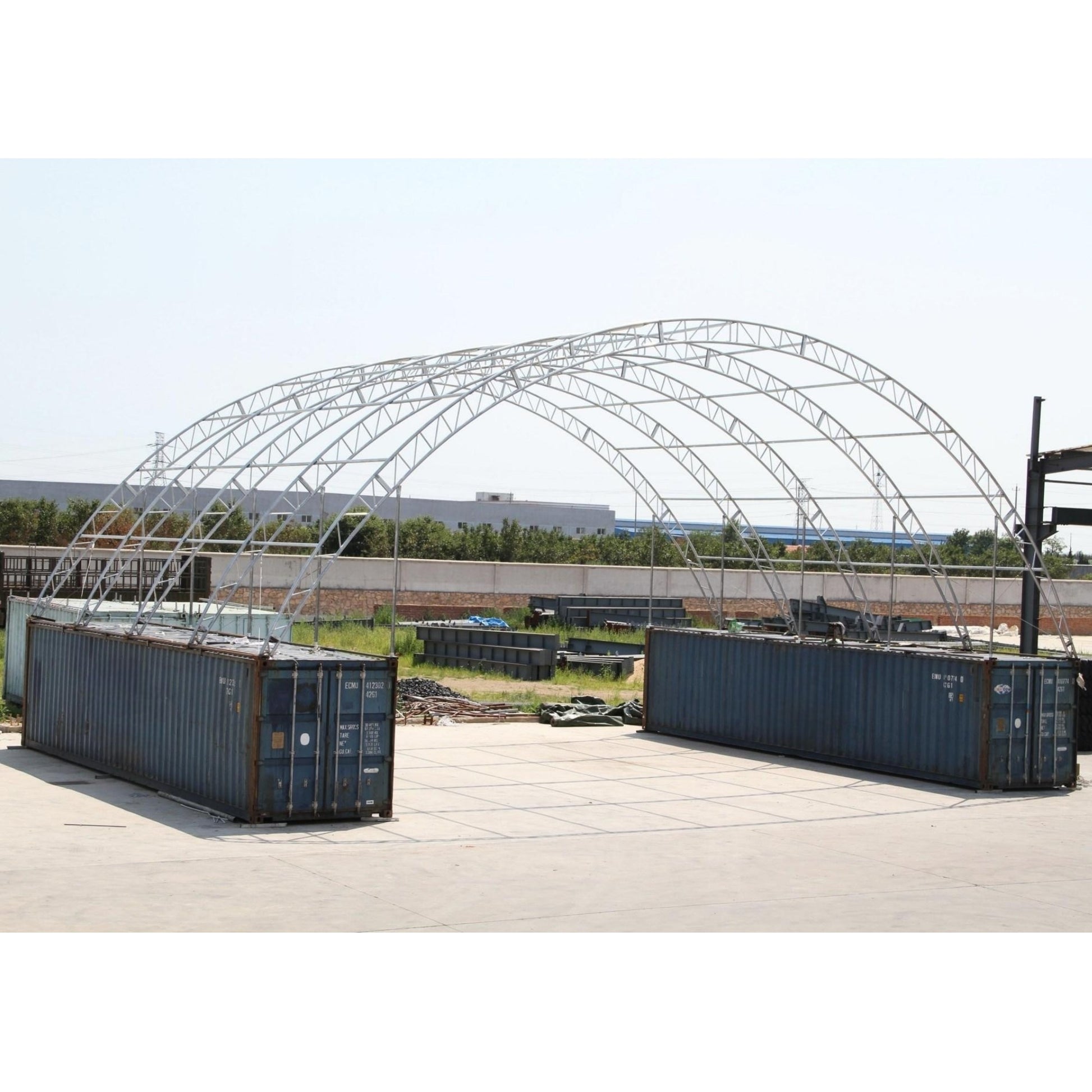

| Frame | Double Truss Galvanized Tube |
| Steel Structure | High-Grade Hot Dip Galvanized Steel |
| Fabric |
|
| Fabric Feature | Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property |
| Temperature resistance | -22 - +158 °F |
| Front/back walls (optional) | |

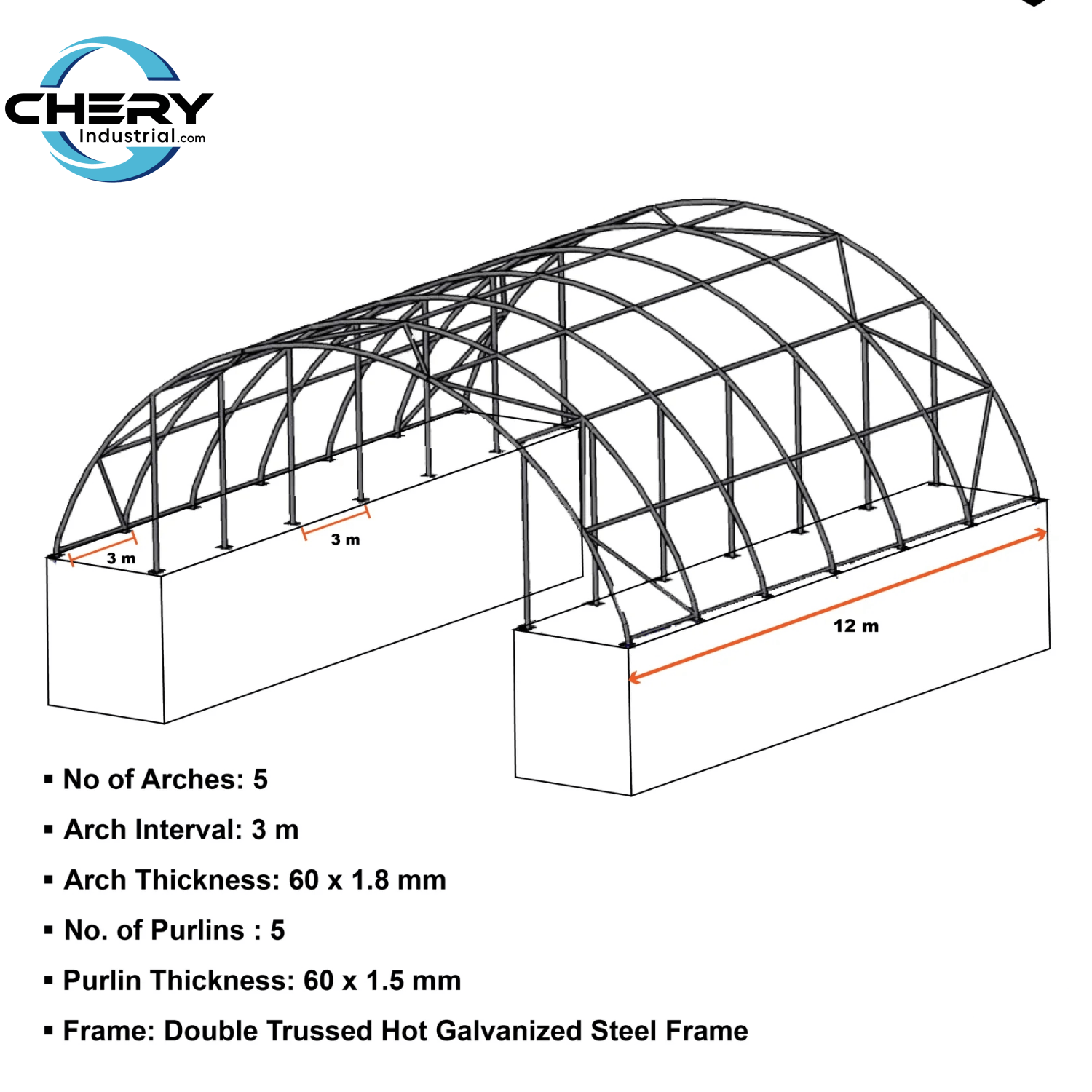

| Arch Interval | 9.8 ft |
| Arch Ø (mm) | Ø60x1.8 |
| Purlin Ø (mm) | Ø60x1.5 |
| Tension System | Pipe and Ratchet Tie-Down System |
| Easy Installation | Twist lock and clamp installation |
| Weld | Base plates need to be welded on the Containers. |
| Snow Load | 52 lbs/ft² |
| Wind Load | 56 miles/h |
| Average assembly time for DIY with 4 persons |
|
| Safety | The tarpaulin is PFAS-free and EU REACH compliant. |
| Tarp Lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
| Frame Lifespan | 15+ years |
| Warranty |
|
Note
- The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
- The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.
- Snow-state (Such as Alaska, Colorado, Vermont, etc)customers are strongly advised to opt for double-truss framing.
Feature
- CSA/TUV Snow Rating Report.
- SGS fabric Certificate.
- The tarpaulin is PFAS-free and EU REACH compliant.
- There is no pole inside, and 100% of the interior space is available
- Heavy-duty PVC cover specially designed for winter.
- The durable frame is more stable and can resist strong wind and snow.

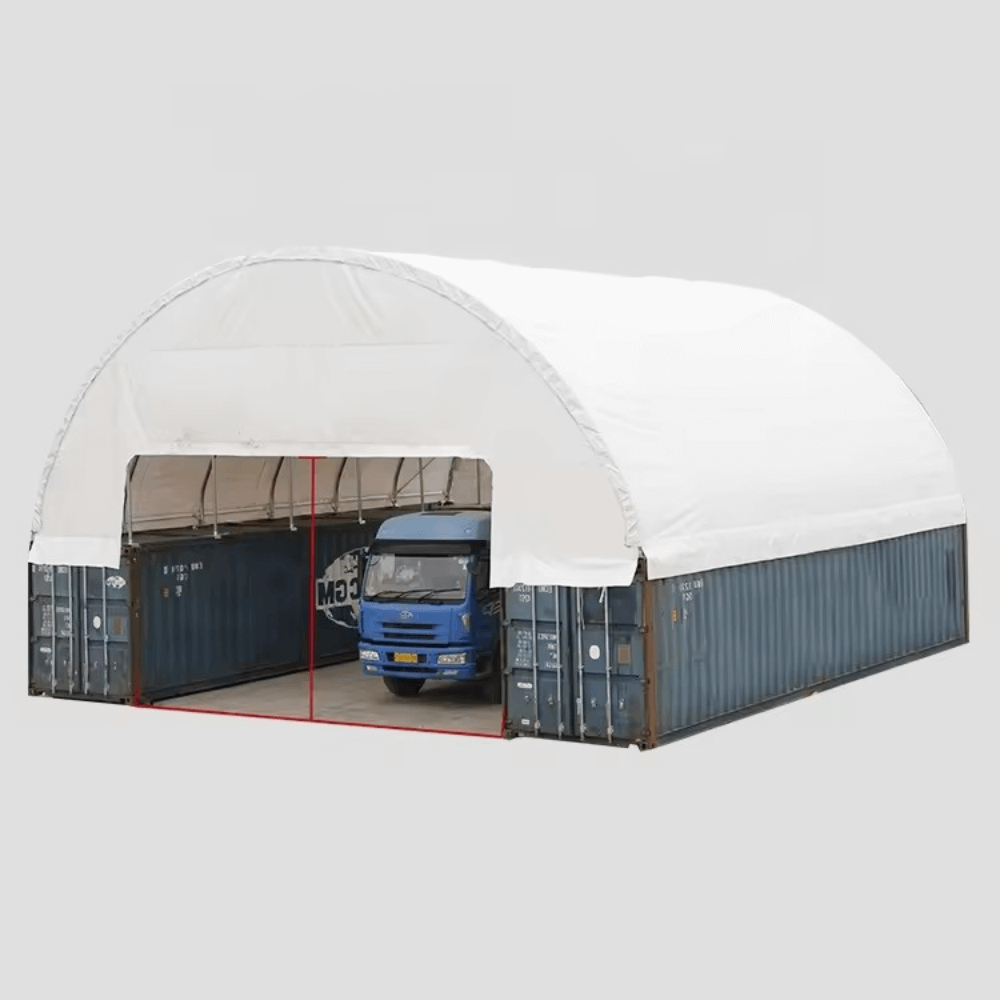

- Usage: ideal for industrial, commercial, and agricultural applications. You can also use it for a warehouse, storage tent, garden and lawn equipment, backyard items, firewood, vehicle shed, etc.
Package Size
- LxWxH (inch): 131x44.1x63.8
- Weight (lb): 4299
- A forklift or equivalent is required for unloading
Attention
(1) Keep the work area clean. Cluttered areas invite injuries.
(2) Keep children away. Be aware of personal safety.
(3) It is easy to assemble if according to our assembly manual. Improper assembly may cause unnecessary mistakes.
(4) Be aware of possible windy conditions; fasten the base in concrete if this situation may occur. Remove the cover during the hurricane.
(5) Clean off snow in time and do not allow snow to sit for extended periods of time.
(6) Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not expose to open flame.
(7) This unit is supposed to be set up on the inner edge of the container, if you want to set up on the outer edge of the container, you will need extra support tubes.
