Description

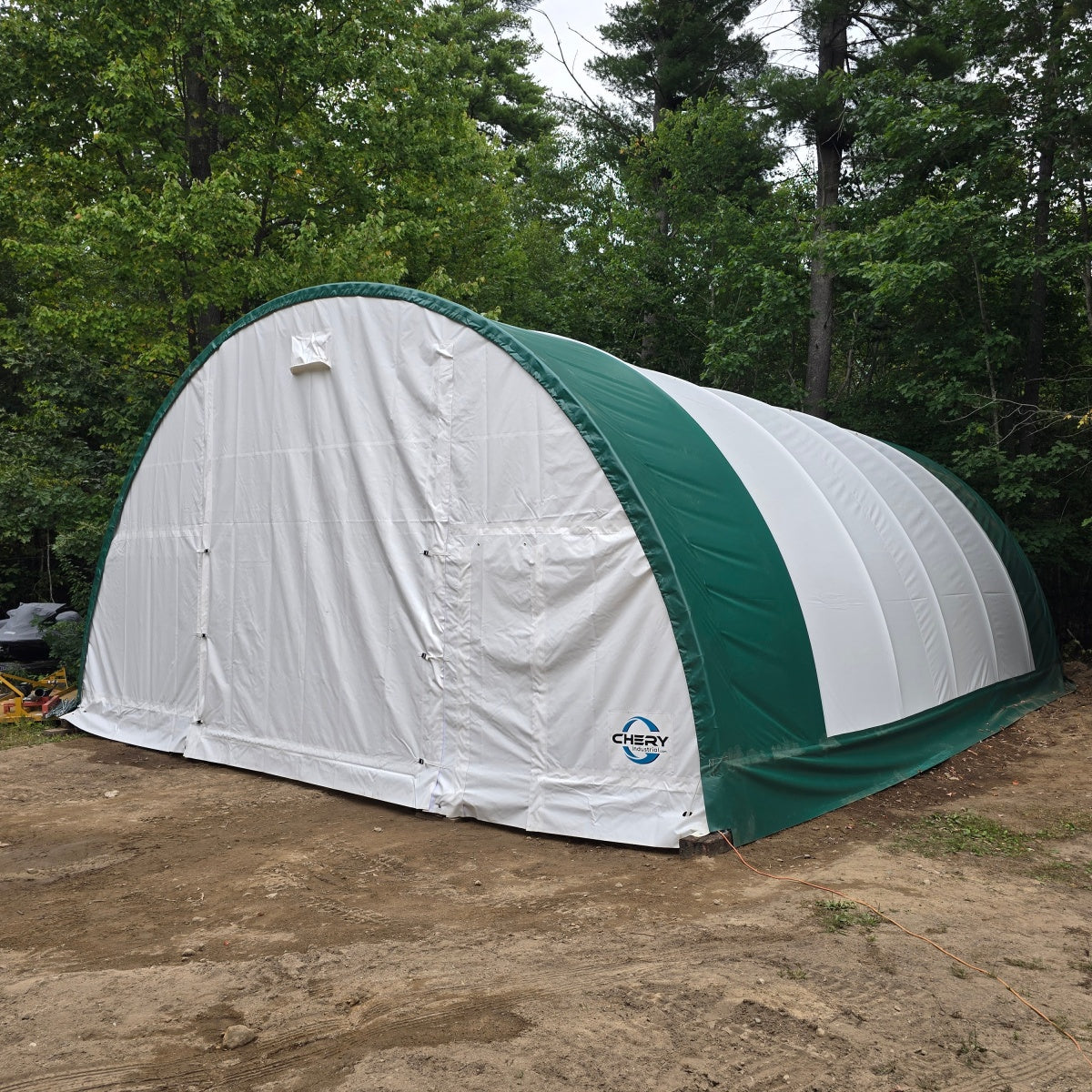

The Gold Mountain Single Truss Arch Storage Shelter W30'xL40'xH15' features a durable galvanized steel frame, providing stability and resistance to wind and snow. Ideal for all-season outdoor storage, on the UV-resistant PE or PVC canopy, which protects against sun and water. The rollup door offers added protection on windy or rainy days. Suitable for industrial, commercial, agricultural, and personal use, it accommodates vehicles, equipment, firewood, and more.
It’s the owners' responsibility to take off snow immediately if not slide off by itself.
Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
How to build a Storage Shelter?
Specification
| Description |
Specifications |
| Dimensions (WxLxH) | 30'x40'x15' |
| Door size (WxH) (Front & Rear) | 11.5'x11.5' |
| Door Type | Rope Pullup Door |
| Man Door (WxH) | 2.6'x6.6' |
| Frame | Single Truss Galvanized Tube |
| Steel Frame | Hot Dip Galvanized Steel |
| Truss tube | 14 Gauge |
| Tarp Fabric | PE or PVC |
| Tarp Color (customizable) | White with Green/Red Edge |
| Temperature resistance | -22 - +158 °F |
| Arch Ø | Φ 70x42x2mm |
| Purlin Ø | Φ 40x1.5mm |
| Arch Spacing | 6.56 ft |
| Number of Arch | 7 |
| Number of Anchor plates | 14 |
| Tension System | Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons | 3 Days |
| Snow Load | 42 lbs/ft² |
| Wind Load | 50 miles/h |
| Tarp lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan |
15+ Years |
|
Warranty |
- PE: 2 Years Warranty. - PVC: 8 Years Warranty. |
|
Fabric (Optional) |
|
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Feature
- No building permits required*.
- Stable, durable, competitive-priced tent
- Style: Freestanding
- 100% waterproof, Self-cleaning, Tear-resistant, UV resistant
- CSA/TUV Snow Rating Test Report
- SGS fabric Certificate
- Type: Prefabricated Building
- Certificate: SGS
- Application: warehouses, carports, Event and exhibition tents, Garages for trucks, buses, vans, and boats, Freight warehouses, Commercial tents
Package Size
- LxWxH (inch): 115x30x29
- Weight (lb): 1903
- A forklift or equivalent is required for unloading.
Parts
Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
Still, have questions? Email service@cheryindustrial.com and we will respond to you in 48 hours :)
s304015, 30x40, 30x40x15, Single Truss Storage Shelter, fallout shelter storage room, Gold Mountain Storage shelter, Gold Mountain dome storage shelter, outdoor storage shelter, Storage Shelter
Product FAQ
The assembly was easy, and it provided a lot of covered space for stockpiling materials and parking vehicles.
Once installed, it becomes a convenient storage or lunch area for workers.
Had to call Chery about an issue with the installation. They fixed the issue right away and got things back on track. Thank you.
I purchased this for my farm.. and I couldn't be happier.
The PVC fabric is strong and durable..my equipment stays protected! Highly satisfied!
