Single Truss Arch Storage Shelter W30'xL85'xH15'

Save $800
Gold MountainSKU: SS000155

Material: 11oz PE
Price:
Sale price$7,499 Regular price$8,299

Stock:
In stock

Description

The Gold Mountain Single Truss Arch Storage Shelter W30’xL85’xH15’ is perfect for heavy rain and snow areas, offering a durable workspace solution. It features a rust-resistant galvanized steel frame, metal corner joints, and tear-proof reinforced PVC fabric with a 8-year warranty. Easy to build and suitable for all seasons, it is ideal for outdoor and farm storage. Dual doors at each end enhance accessibility, making it the first choice for storage and space needs.

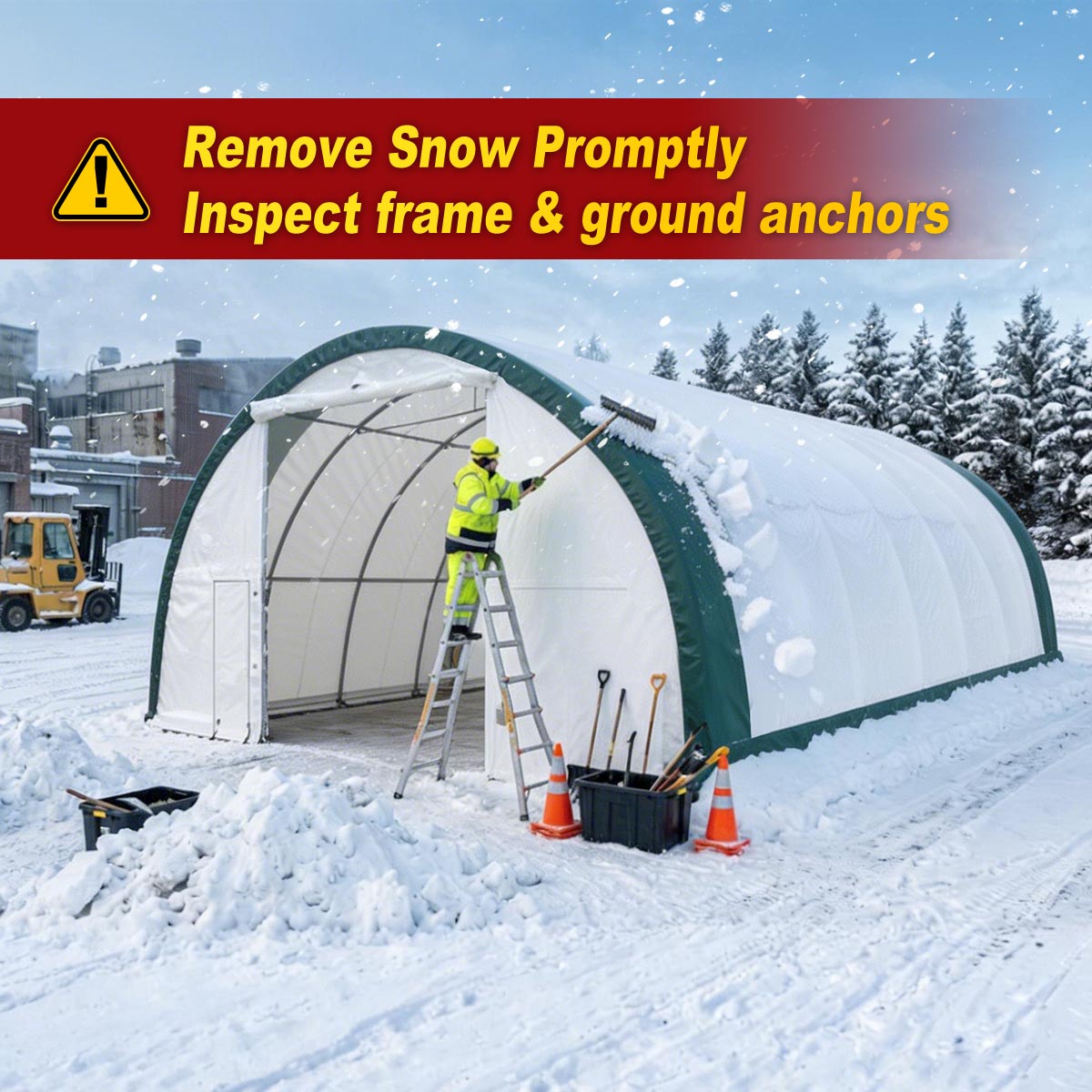

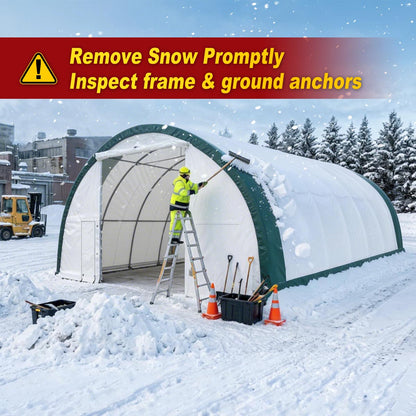

It’s the owners' responsibility to take off snow immediately if not slide off by itself.

Single Truss Arch Storage Shelter W30'xL85'xH15' Feature

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.

How to build a Storage Shelter?

Installation Manual

Specification

Description Specifications
Dimensions (WxLxH) 30'x85'x15'
Door size (WxH) (Front & Rear) 11.5'x11.5'
Door Type Rope Pullup Door
Man Door (WxH) 2.6'x6.6'
Frame Single Truss Galvanized Tube
Steel Frame Hot Dip Galvanized Steel
Truss tube 14 Gauge
Tarp Fabric PE or PVC
Tarp Color (customizable) White with Green/Red Edge
Temperature resistance -22 - +158 °F
Arch Ø  Ф 70x42x2mm
Purlin Ø  Φ 40x1.5mm
Arch Spacing 6.56 ft
Number of Arch 14
Number of Anchor plates 28
Tension System Pipe and Ratchet Tie-Down System
Average assembly time for DIY with 4 persons 4 Days
Snow Load 42 lbs/ft²
Wind Load 50 miles/h
Tarp lifespan 7-10 years, depending on the type of fabric and environmental conditions.

Frame lifespan

15+ Years

Warranty

- PE: 2 Years Warranty.
- PVC: 8 Years Warranty.

Fabric (Optional)

  • Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
  • Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
  • Please contact us to order.
Country of Origin China

Installation Tips

1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.

2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.

Foundation-pre_work-Arch-Storage-Shelter

Feature

  • No building permits required*.
  • Resistant toward water, UV, and fading
  • Style: Freestanding
  • There is an average of 7-10 years of cover lifespan, depending on the environmental and weather conditions.
  • A huge capacity for trucks, automobiles, and more bulk storage
  • Protect belongings from wind, snow, and rain
  • CSA/TUV Snow Rating Test Report
  • SGS fabric Certificate
  • Certificate: SGS

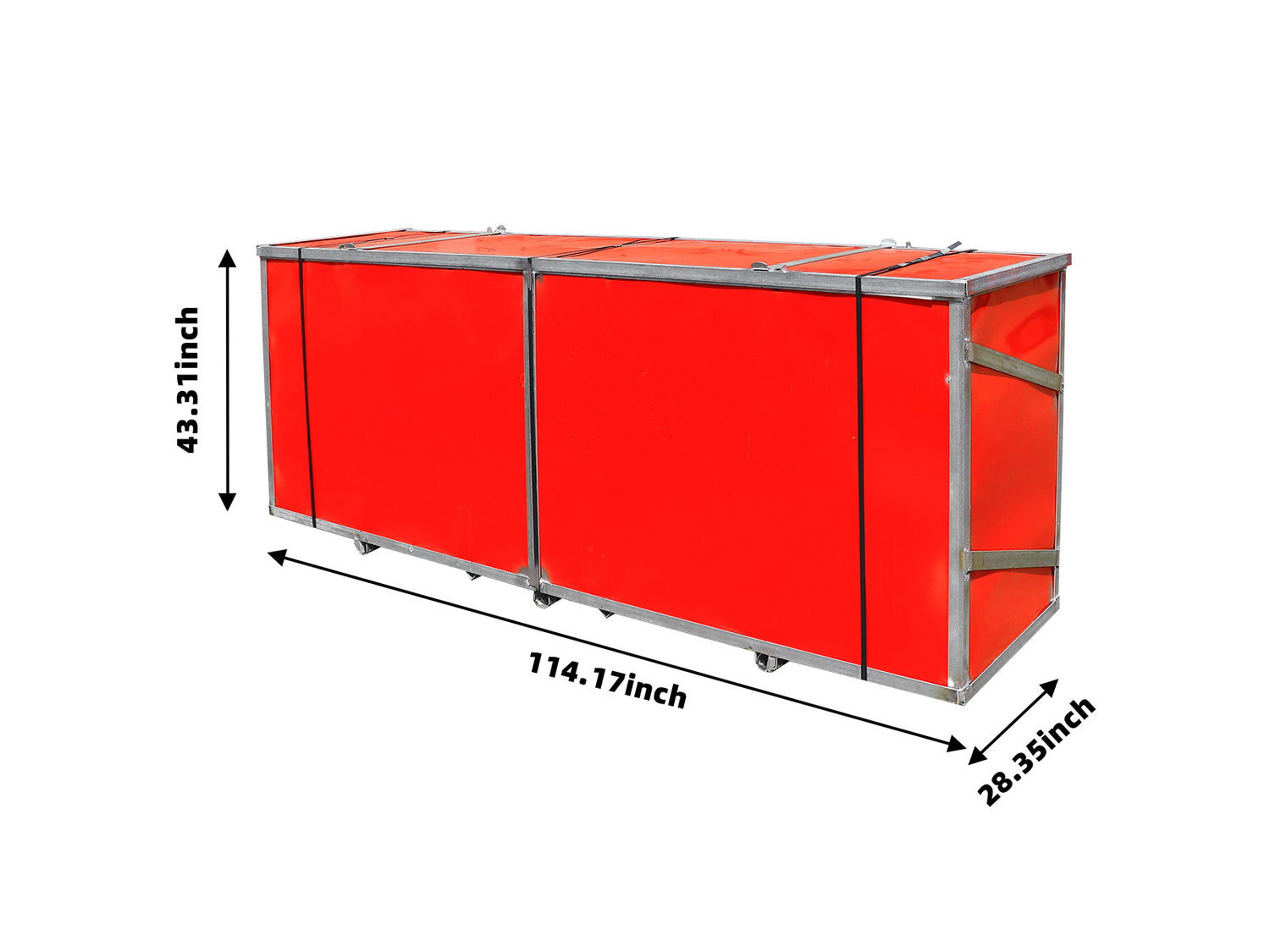

Package Size

  • LxWxH (inch): 115x30x46
  • Weight (lb): 3080
  •  A forklift or equivalent is required for unloading.

Parts

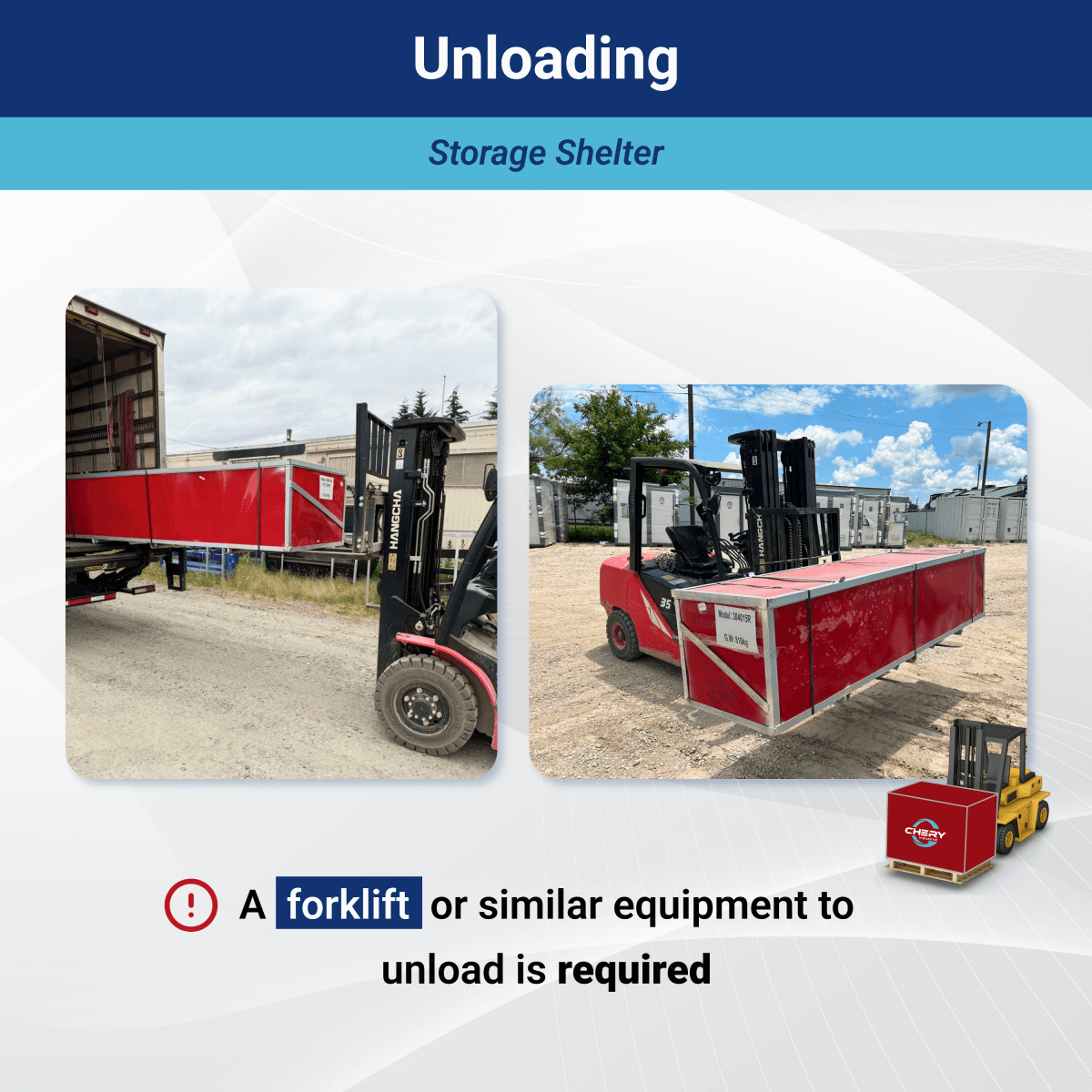

Delivery and Unloading

  • The product will be either loaded onto a box or flatbed truck, depending on its size.
  • A forklift or equivalent is required for unloading.
Chery Industrial Storage Shelter deliveryChery Industrial Storage Shelter unloading

s308515, 30x85, 30x85x15, Single Truss Storage Shelter, fallout shelter storage room, Gold Mountain Storage shelter, Gold Mountain dome storage shelter, outdoor storage shelter, Storage Shelter

Product FAQ

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jim Butler
Shelter that exceeded expectations!

5 Star Shelter We can now install it in four days... we can store building materials and park vehicles on site.

B
Brian Reynolds
High quality

Easy to build, puts together quite beautifully, and has plenty of storage space.
