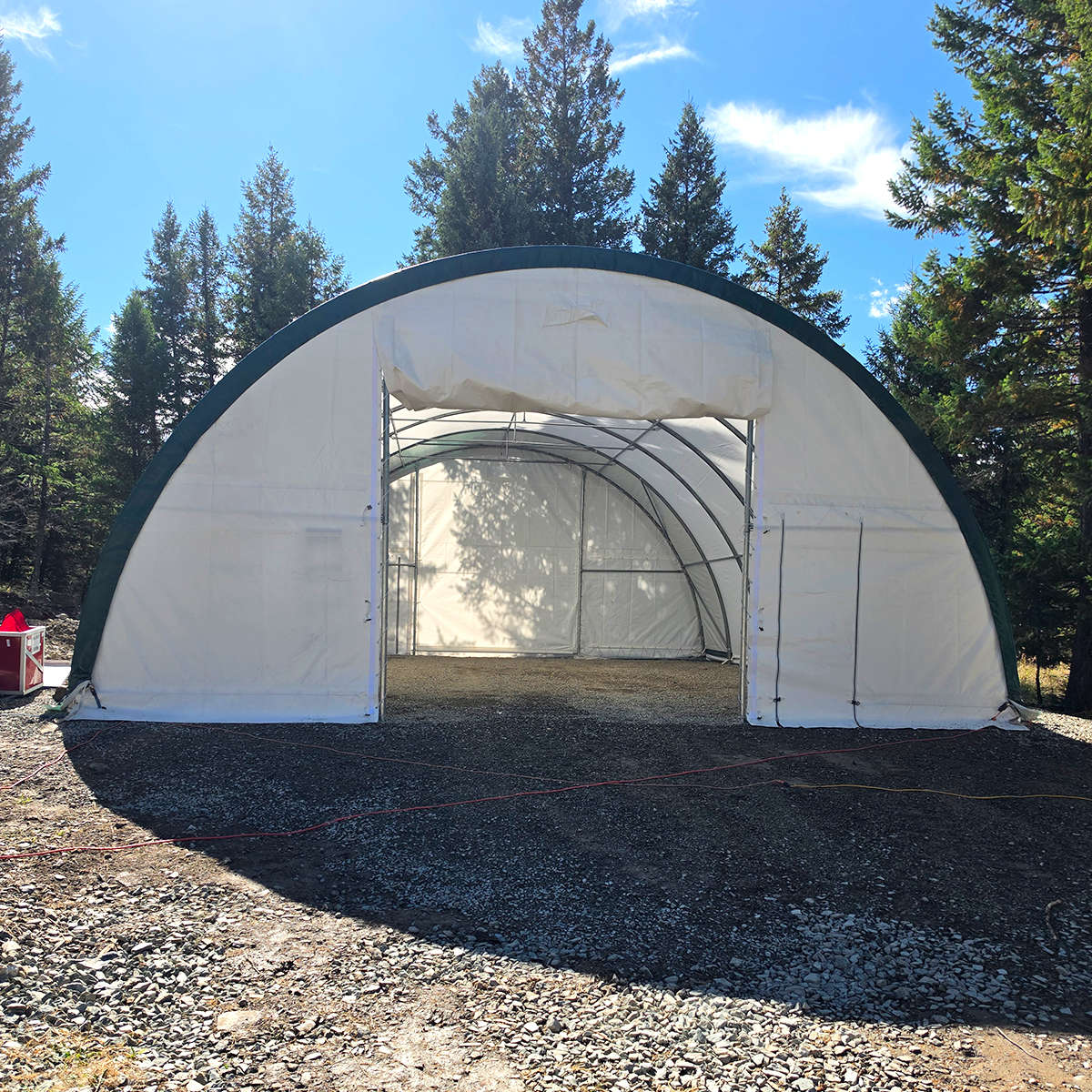

Single Truss Arch Storage Shelter W30'xL40'xH15'

Save $1,800
Gold MountainSKU: SS000132

Material: 11oz PE
Price:
Sale price$5,199 Regular price$6,999

Stock:
In stock

Description

The Gold Mountain Single Truss Arch Storage Shelter W30'xL40'xH15' features a durable galvanized steel frame, providing stability and resistance to wind and snow. Ideal for all-season outdoor storage, on the UV-resistant PE or PVC canopy, which protects against sun and water. The rollup door offers added protection on windy or rainy days. Suitable for industrial, commercial, agricultural, and personal use, it accommodates vehicles, equipment, firewood, and more.

It’s the owners' responsibility to take off snow immediately if not slide off by itself.

Single Truss Arch Storage Shelter W30'xL40'xH15' Feature

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.

How to build a Storage Shelter?

Installation Manual

Specification

Description Specifications
Dimensions (WxLxH) 30'x40'x15'
Door size (WxH) (Front & Rear) 11.5'x11.5'
Door Type Rope Pullup Door
Man Door (WxH) 2.6'x6.6'
Frame Single Truss Galvanized Tube
Steel Frame Hot Dip Galvanized Steel
Truss tube 14 Gauge
Tarp Fabric PE or PVC
Tarp Color (customizable) White with Green/Red Edge
Temperature resistance -22 - +158 °F
Arch Ø Φ 70x42x2mm
Purlin Ø  Φ 40x1.5mm
Arch Spacing 6.56 ft
Number of Arch 7
Number of Anchor plates 14

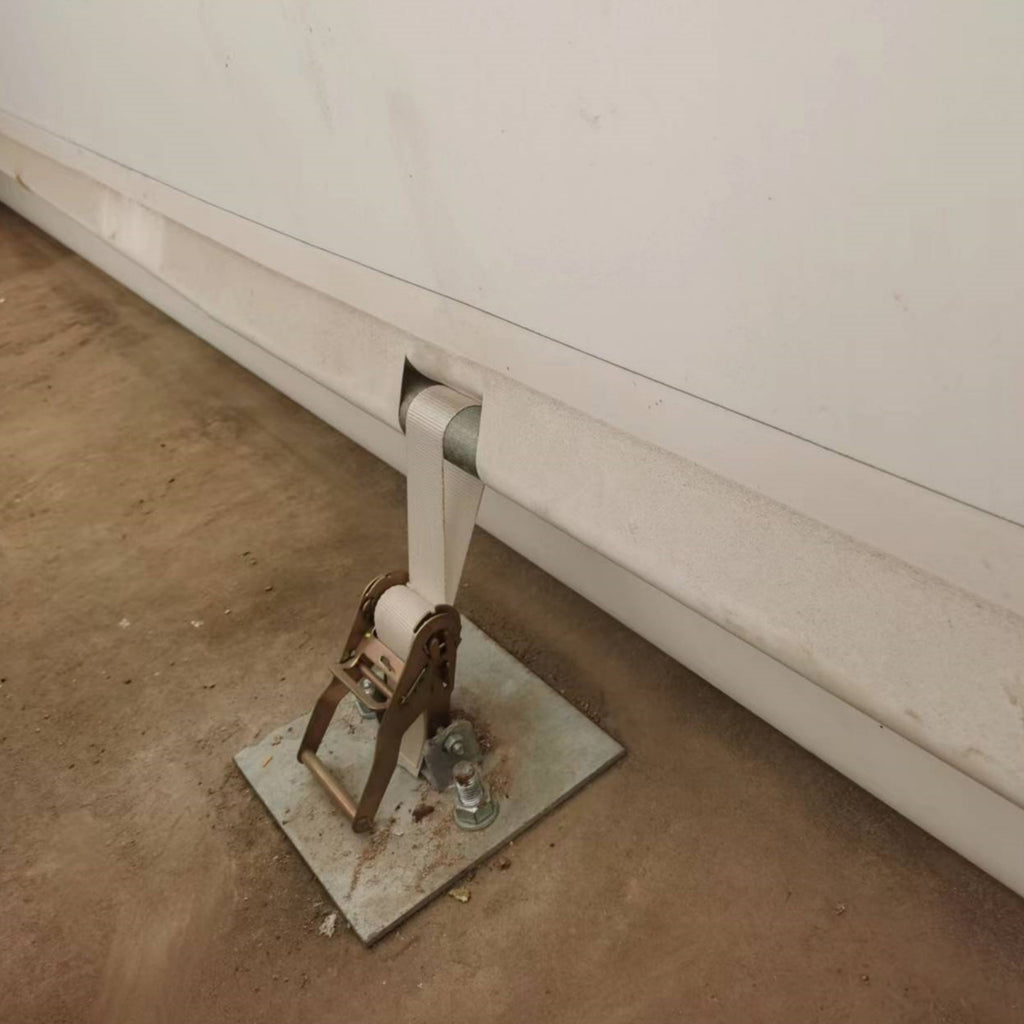

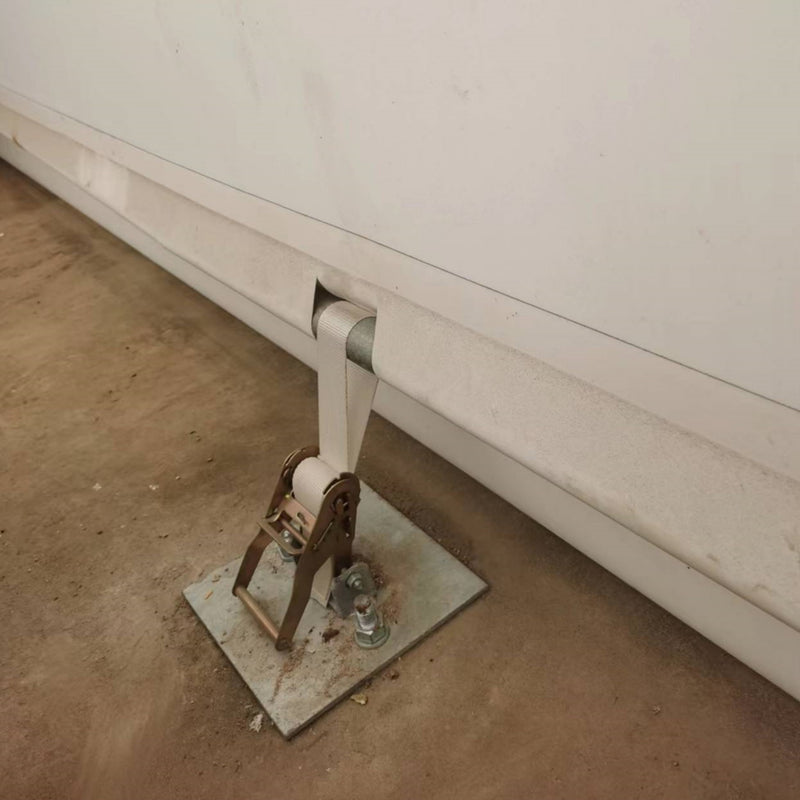

Tension System Pipe and Ratchet Tie-Down System
Average assembly time for DIY with 4 persons 3 Days
Snow Load 42 lbs/ft²
Wind Load 50 miles/h
Tarp lifespan 7-10 years, depending on the type of fabric and environmental conditions.

Frame lifespan

15+ Years

Warranty

- PE: 2 Years Warranty.
- PVC: 8 Years Warranty.

Fabric (Optional)

  • Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
  • Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
  • Please contact us to order.

Installation Tips

1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.

2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.

Foundation-pre_work-Arch-Storage-Shelter

Feature

  • No building permits required*.
  • Stable, durable, competitive-priced tent
  • Style: Freestanding
  • 100% waterproof, Self-cleaning, Tear-resistant, UV resistant
  • CSA/TUV Snow Rating Test Report
  • SGS fabric Certificate
  • Type: Prefabricated Building
  • Certificate: SGS
  • Application: warehouses, carports, Event and exhibition tents, Garages for trucks, buses, vans, and boats, Freight warehouses, Commercial tents

Package Size

  • LxWxH (inch): 115x30x29
  • Weight (lb): 1793
  • A forklift or equivalent is required for unloading.

Parts

Delivery and Unloading

  • The product will be either loaded onto a box or flatbed truck, depending on its size.
  • A forklift or equivalent is required for unloading.
Chery Industrial Storage Shelter deliveryChery Industrial Storage Shelter unloading

Still, have questions? Email service@cheryindustrial.com and we will respond to you in 48 hours :)
